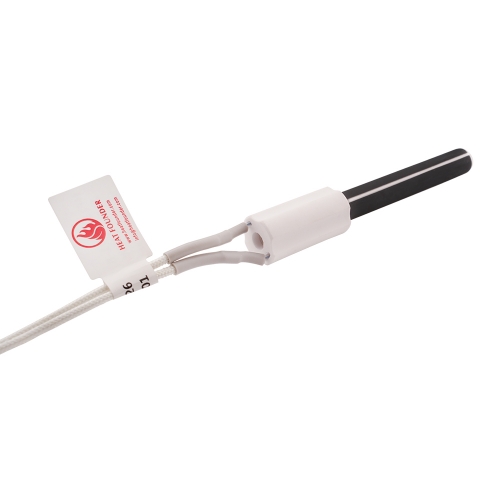

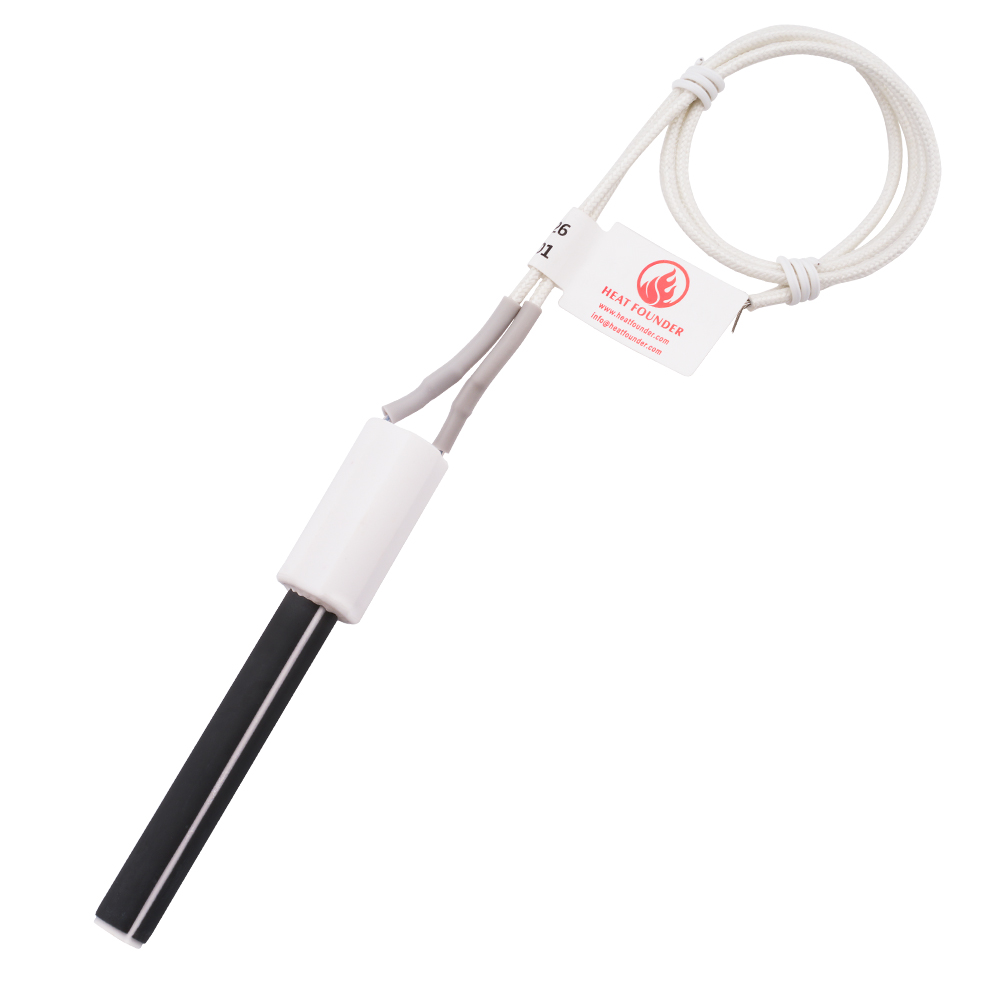

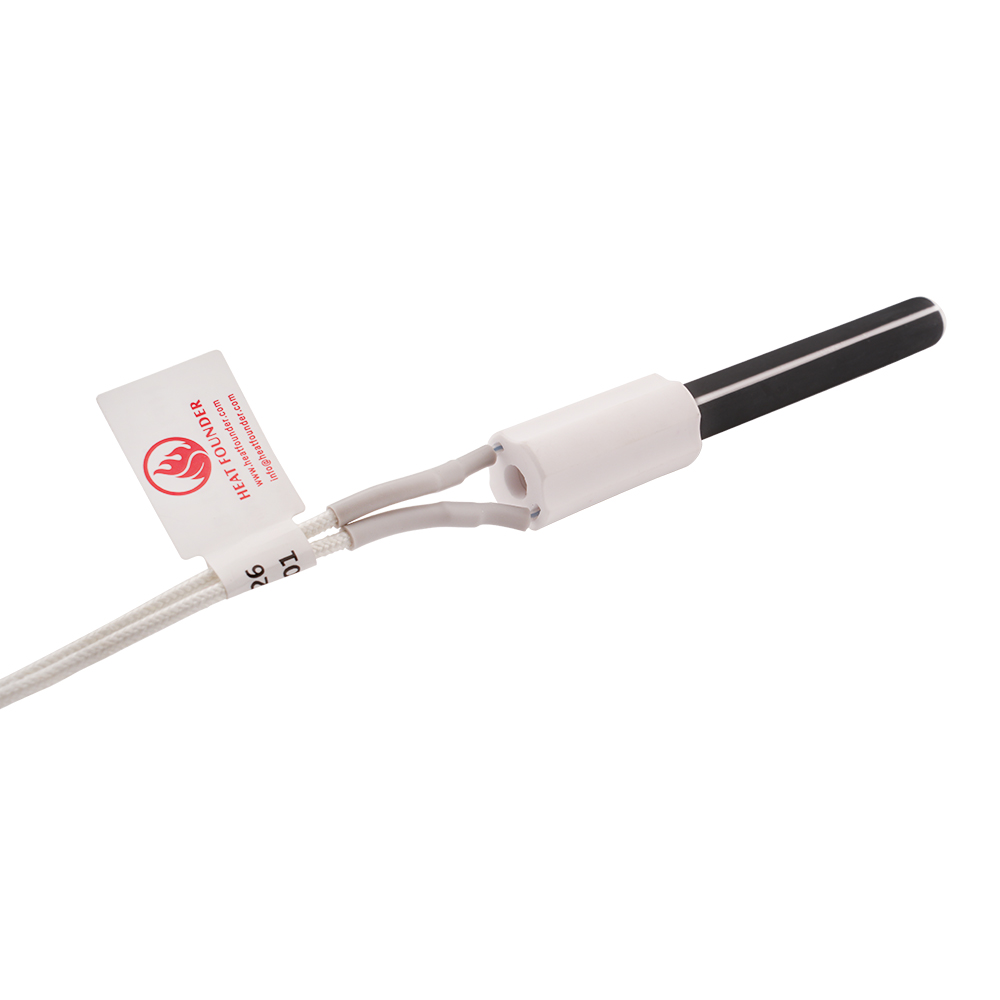

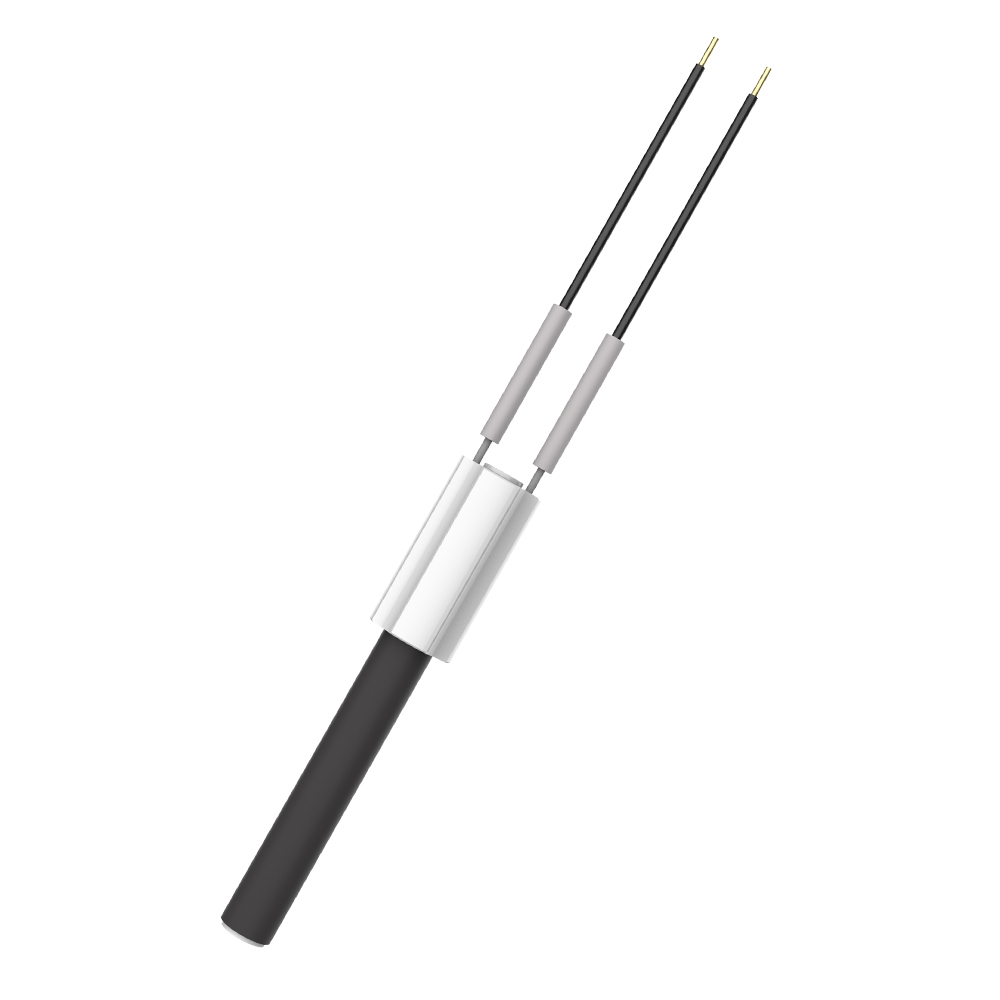

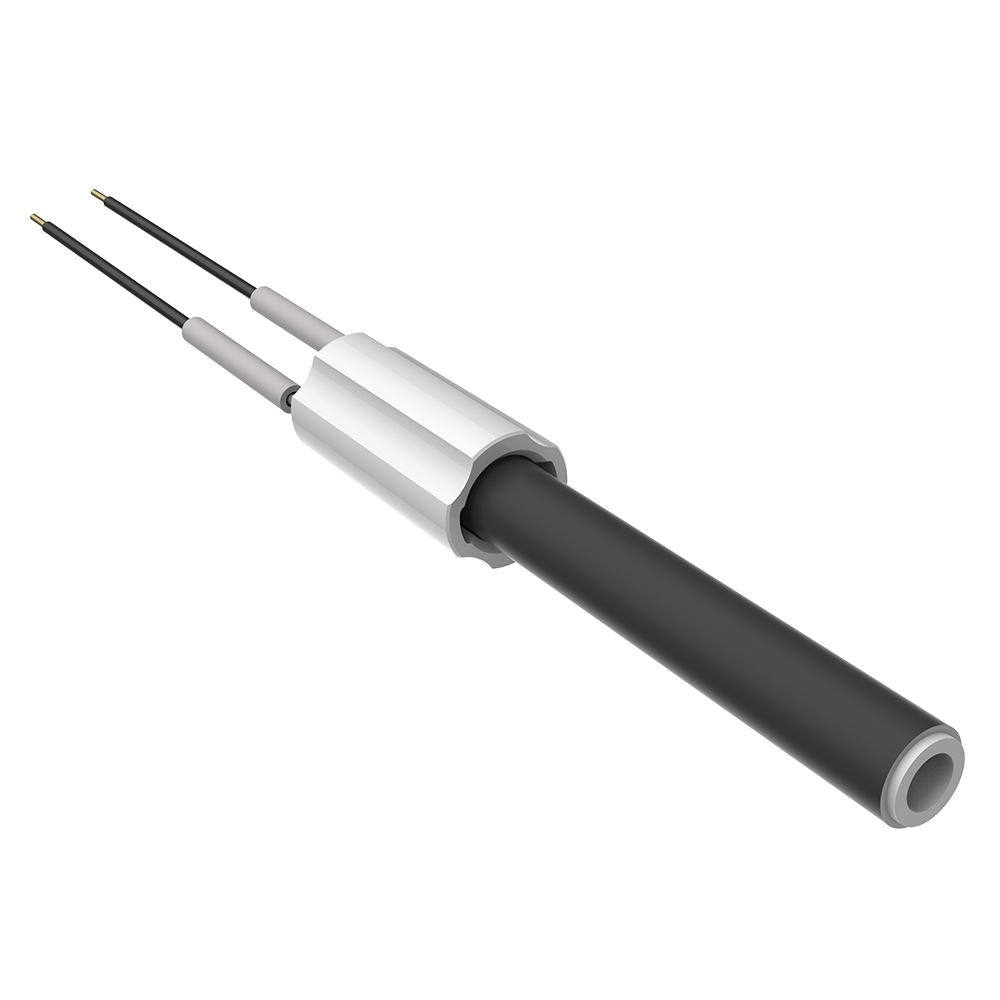

HF1310 Series Ceramic Igniter

Name: HF1310 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1310 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1310 Series

The HF1310 Series ceramic igniter delivers precise ignition with robust 96% alumina ceramic construction. Designed as a reliable furnace ignitor and hot surface ignitor, it ensures efficient furnace starts.

Ask for a Solution PDF Format

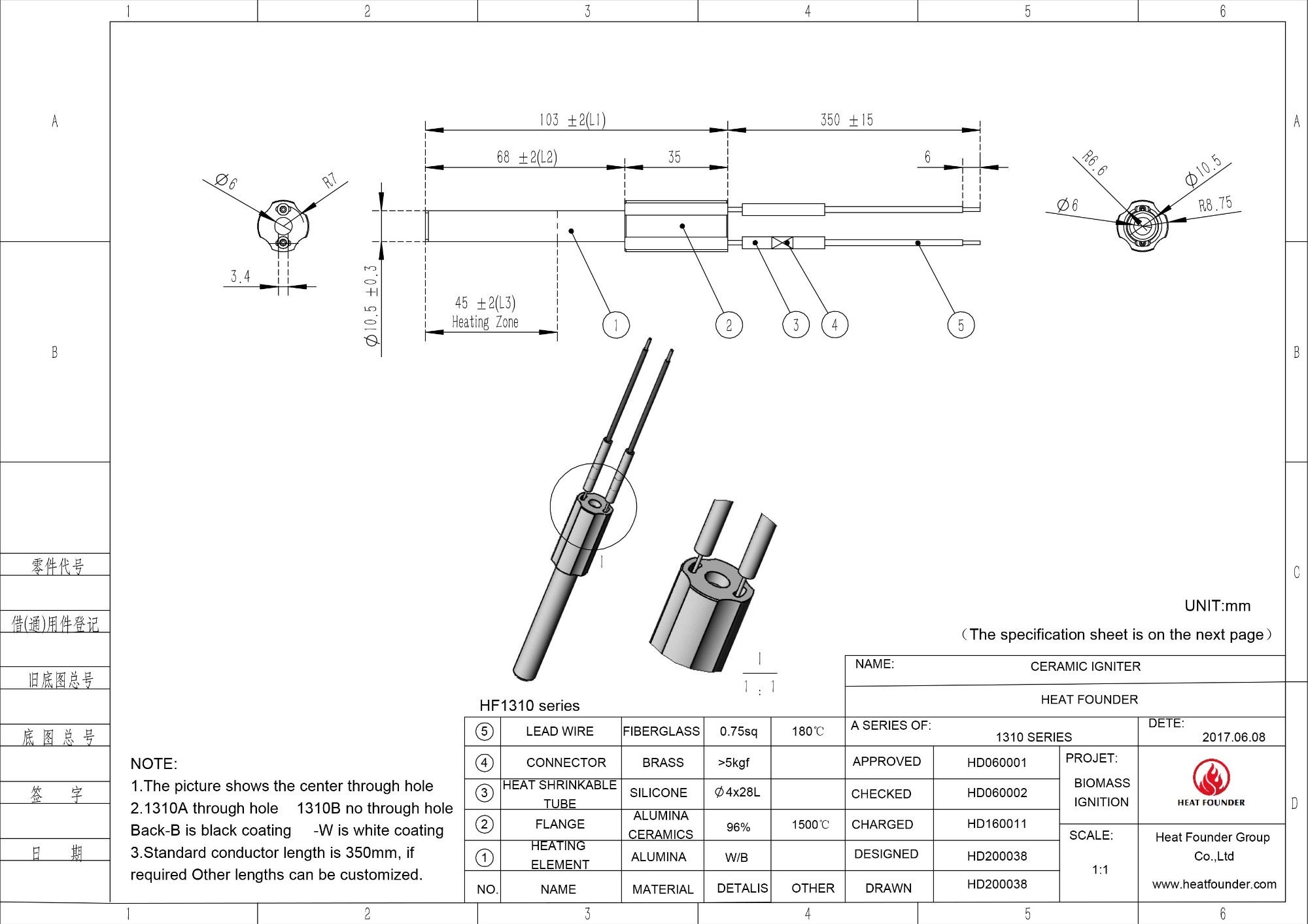

Description DRAWING

Functional Integration for Industrial Heating Systems
The HF1310 Series ceramic igniter is engineered to serve professionals requiring dependable ignition components within heating systems, including OEMs and system integrators in industrial facilities. Its role as an igniter for furnace applications positions it as an essential component for achieving consistent and safe ignition processes across equipment such as biomass boilers and gas burners. Targeted users benefit from its adaptability to diverse furnace types, enabling seamless integration with existing heating controls and sensors for optimized thermal management and operational reliability.

Technical Specifications and Material Excellence
Constructed primarily of high-grade 96% alumina ceramic material, the HF1310 Series functions effectively at 230V and 250W, withstanding temperatures ranging from 30 to 1050 °C. Its ignition time is rapid, between 40 and 60 seconds, ensuring prompt flame establishment. The unit features precision-engineered ceramic, stainless steel, and copper flanges which can be customized to specific dimensional criteria. This combination supports extended durability and thermal shock resistance, reflecting compliance with ISO9001, SGS, and Intertek certifications. Its robust build ensures reliability as a hot rod igniter and a critical component in furnace ignition systems.

Industry Applications and Operational Value
This ceramic heater operates efficiently in multiple sectors, including residential pellet stoves, commercial gas burner systems, and industrial boilers. As a dependable furnace ignitor replacement, it facilitates smooth ignition cycles, optimizing fuel combustion and contributing to energy efficiency initiatives. Key industries such as agriculture, petrochemical processing, and HVAC benefit from its precise ignition control and exceptional durability. Integration of this hot surface ignitor component enhances system response, reduces downtime, and supports compliance with stringent safety and quality standards.

Product Advantages

Structural and Design Benefits of the HF1310 Series

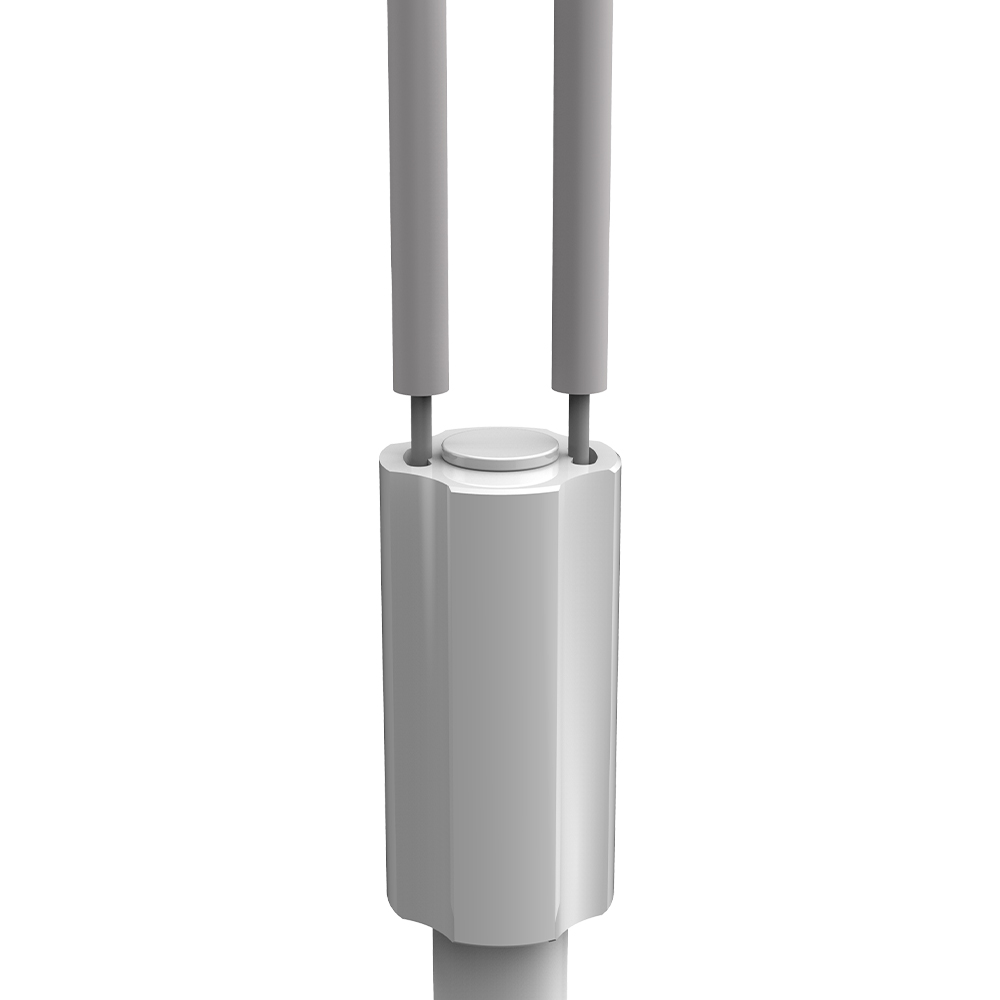

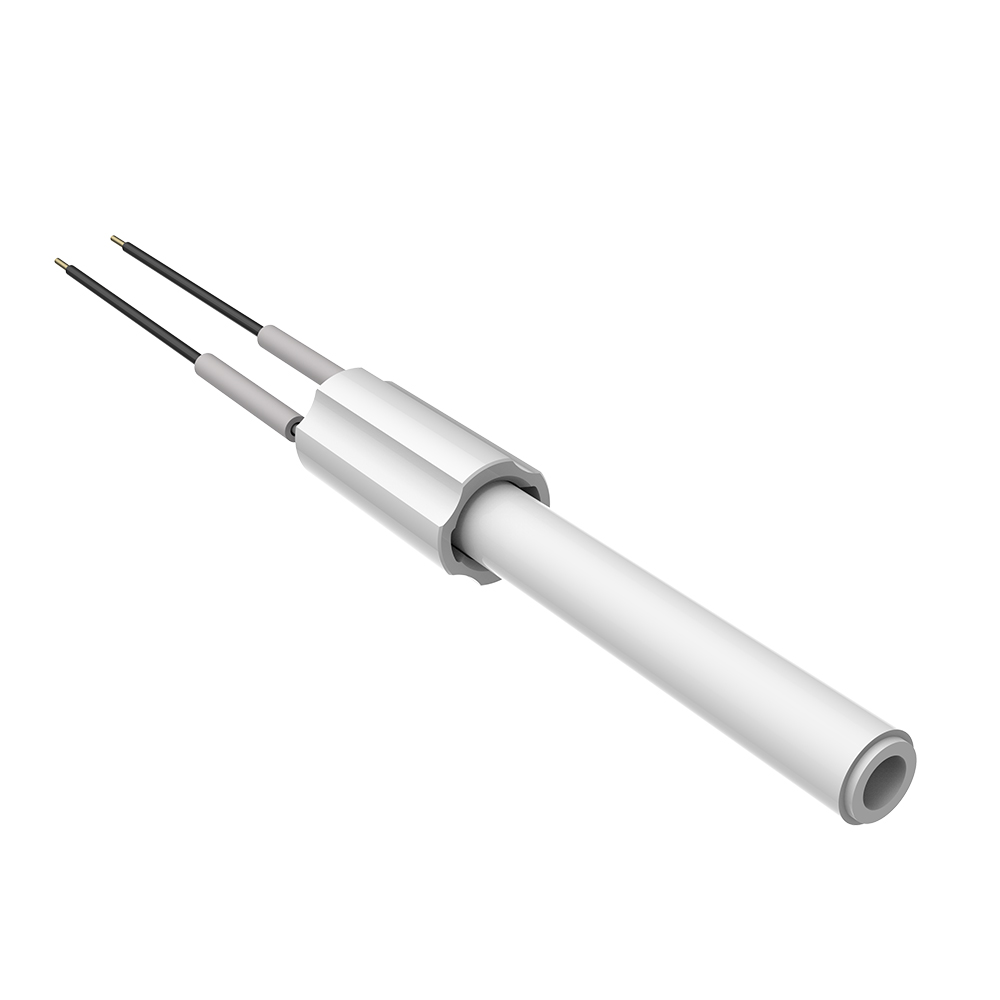

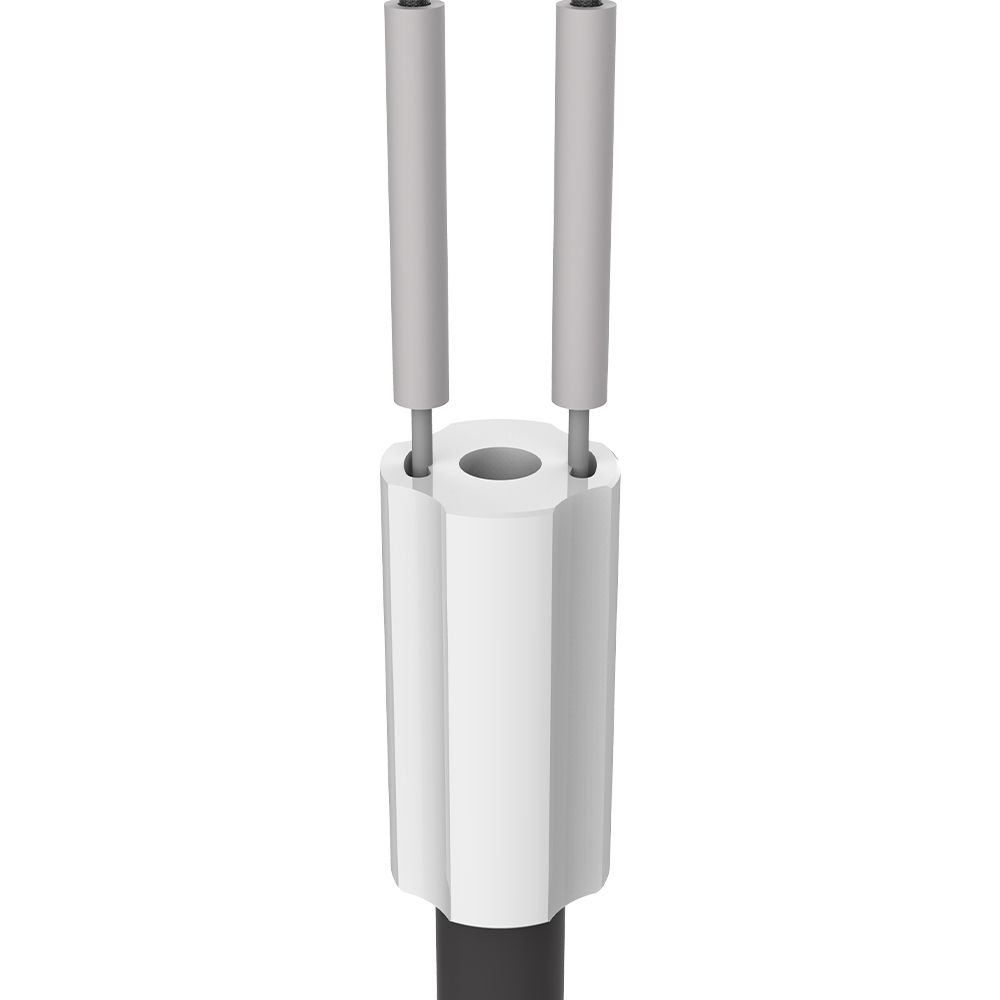

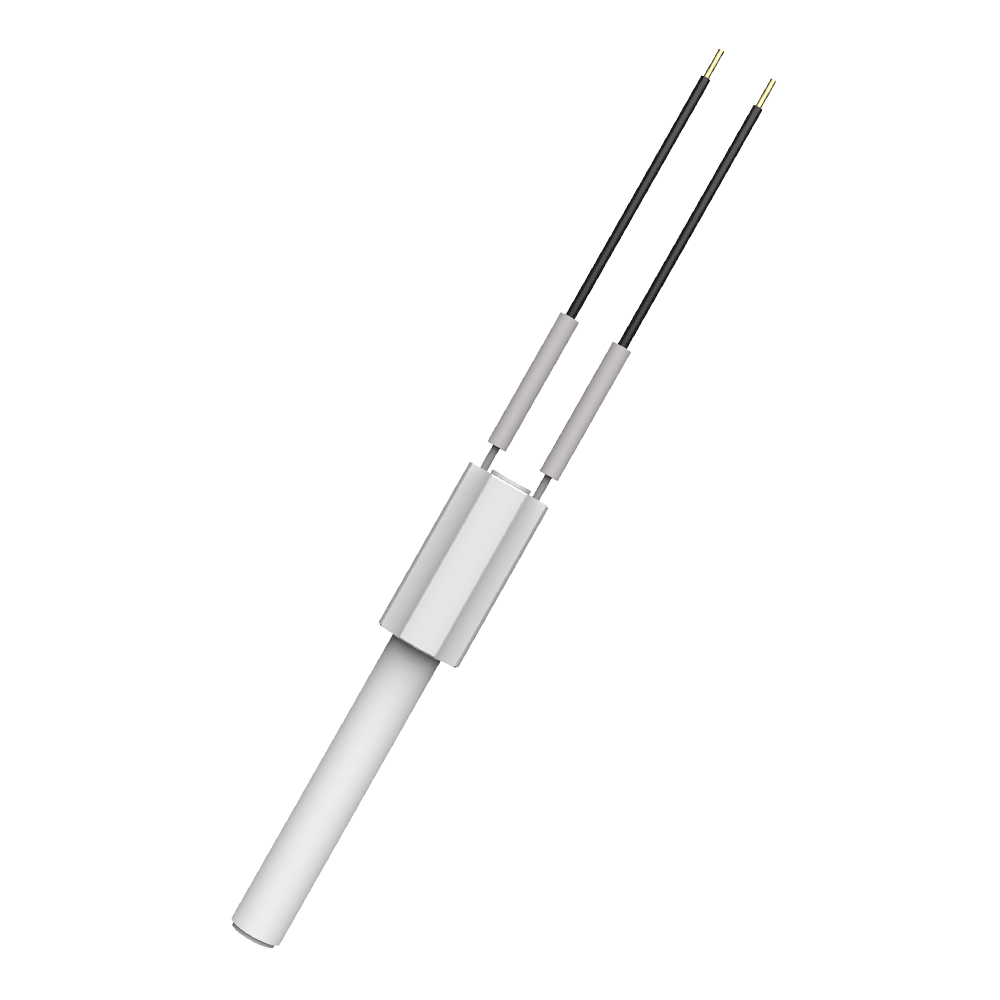

The HF1310 igniter's design centers on modular adaptability with a choice of flange materials—ceramic, stainless steel, and copper—allowing for precise fitment within various furnace architectures. This versatility enables system designers to tailor installation to unique equipment configurations without compromising mechanical integrity. The 96% alumina ceramic core ensures superior thermal and mechanical stability, making it resistant to crack propagation and thermal fatigue. Its construction meets international certifications such as BSCI and TUV, underscoring a commitment to standardized quality and environmental compliance critical for industrial clients requiring dependable furnace ignitor components.

Performance Efficiency and Operational Value Delivered
Optimized for rapid ignition cycles, this igniter for furnace operates reliably under sustained high-temperature conditions, providing quick flame initiation and stable operation. Users benefit from lower maintenance intervals due to its robust construction and resistance to wear, minimizing operational disruptions. The HF1310 Series offers stable electrical characteristics at 230V/250W, effectively contributing to consistent furnace performance and improved combustion efficiency. Its compatibility with various furnace control systems enhances system-level diagnostics and predictive maintenance, delivering measurable improvements in uptime and lifecycle cost.

Name	Ceramic Igniter
Model	HF1310 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	230V
Power	250W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1310A01-W	230	250	10.5	103	68	45	17.5
HF1310B01-W	230	250	10.5	104	68	45	17.5
HF1310A01-B	230	250	10.5	103	68	45	17.5
HF1310B01-B	230	250	10.5	104	68	45	17.5

Use Scenarios

Ignition Solutions in Biomass Boiler Systems
In biomass boiler applications, the HF1310 serves as a hot surface ignitor to initiate combustion reliably under challenging conditions involving variable fuel types and moisture levels. Its thermal durability and quick ignition time ensure the burner starts consistently, reducing cold start emissions and fuel waste. Integration with automated boiler controls enables precise ignition timing and enhances overall system efficiency. Compliance with international quality standards supports plant operators in meeting environmental regulations and operational safety requirements while extending service intervals in agricultural and energy production settings.

Application within Commercial Pellet Stove Ignition Systems
The HF1310 Series ceramic heater functions as a critical ignition source in commercial pellet stoves, where precise and reliable flame initiation is essential for continuous heat generation. The igniter’s quick response and high-temperature tolerance address fluctuating stove operating conditions. As a furnace ignitor replacement, it effectively manages ignition cycles to maintain steady combustion control, improving thermal comfort and reducing system downtime. Its integration promotes ease of installation and operational consistency, supporting maintenance protocols and ensuring energy-efficient performance in homes and business heating environments.

FAQ

What materials are used in the HF1310 Series Ceramic Igniter?
Our HF1310 Series uses 96% alumina ceramic for high thermal and mechanical durability, combined with stainless steel and copper components. These materials ensure the igniter’s performance as a reliable hot surface ignitor in demanding environments.

Can you customize the flange material for different installations?
Yes, we offer flange customization using ceramic, stainless steel, copper, or other materials according to your installation needs. This flexibility ensures compatibility with various furnace setups and supports the use of our furnace ignitor replacement options.

What is the typical lead time for mass production orders?
For bulk orders, our lead times are optimized to ensure prompt delivery while maintaining strict quality control under ISO9001 and SGS standards. We coordinate closely with you to meet your project schedules without compromising on the quality of your igniter for furnace requirements.

How should I maintain the HF1310 Ceramic Igniter for long-term use?
We recommend regular inspection of the igniter for signs of wear or damage and keeping the connection terminals clean. Proper maintenance helps ensure consistent ignition performance, extending the lifespan of your furnace ignitor or hot rod igniter in industrial heating systems.
