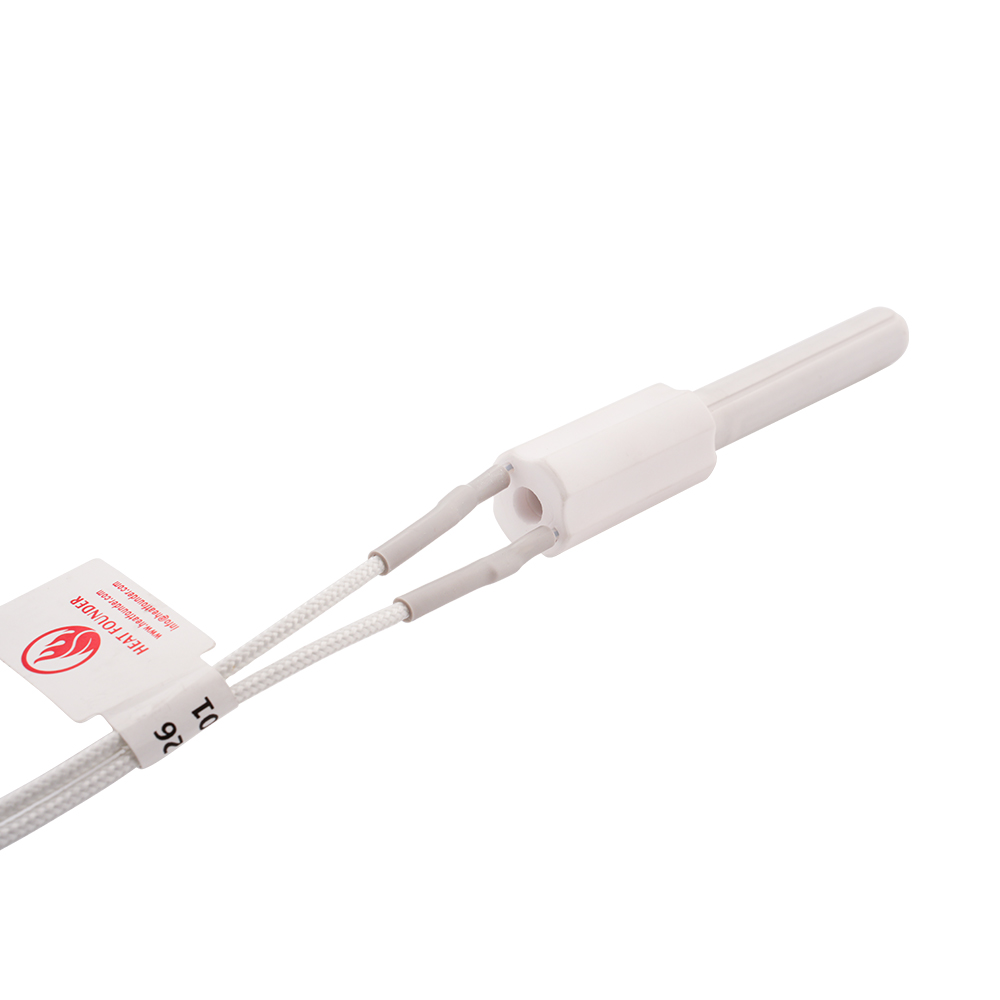

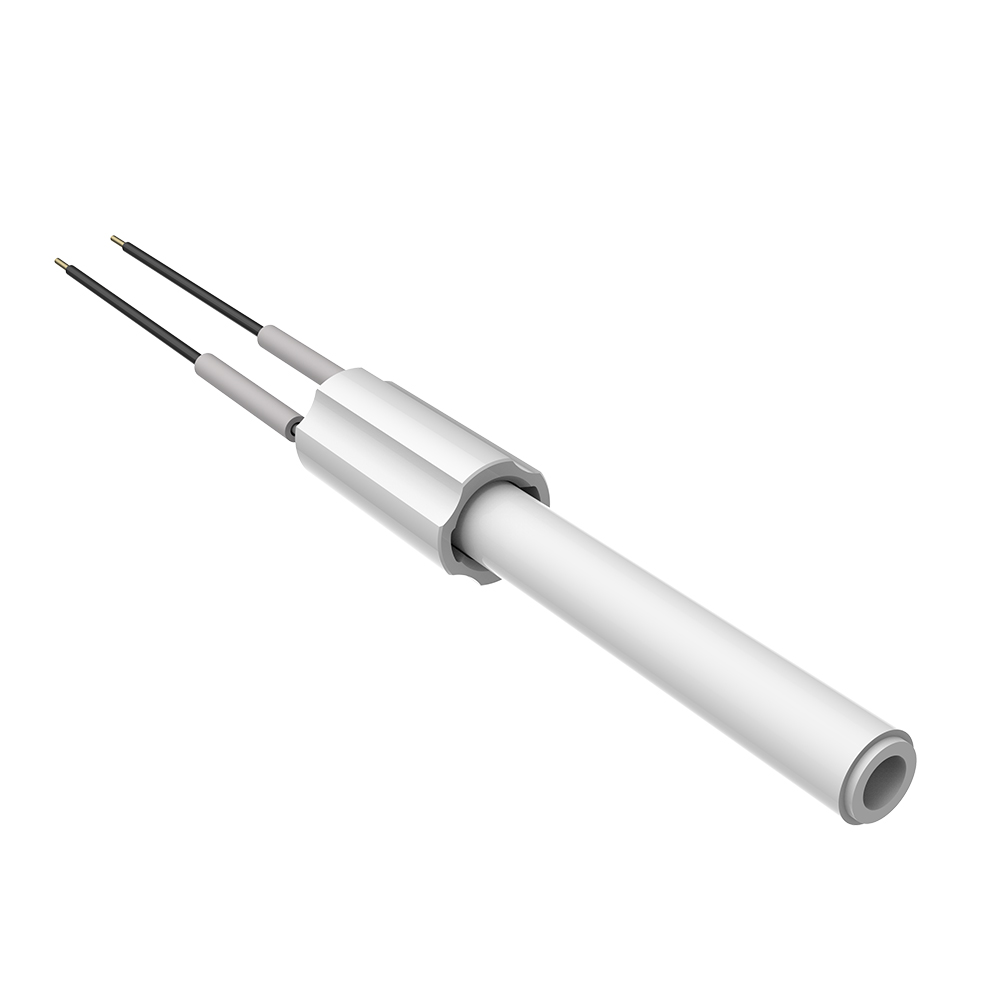

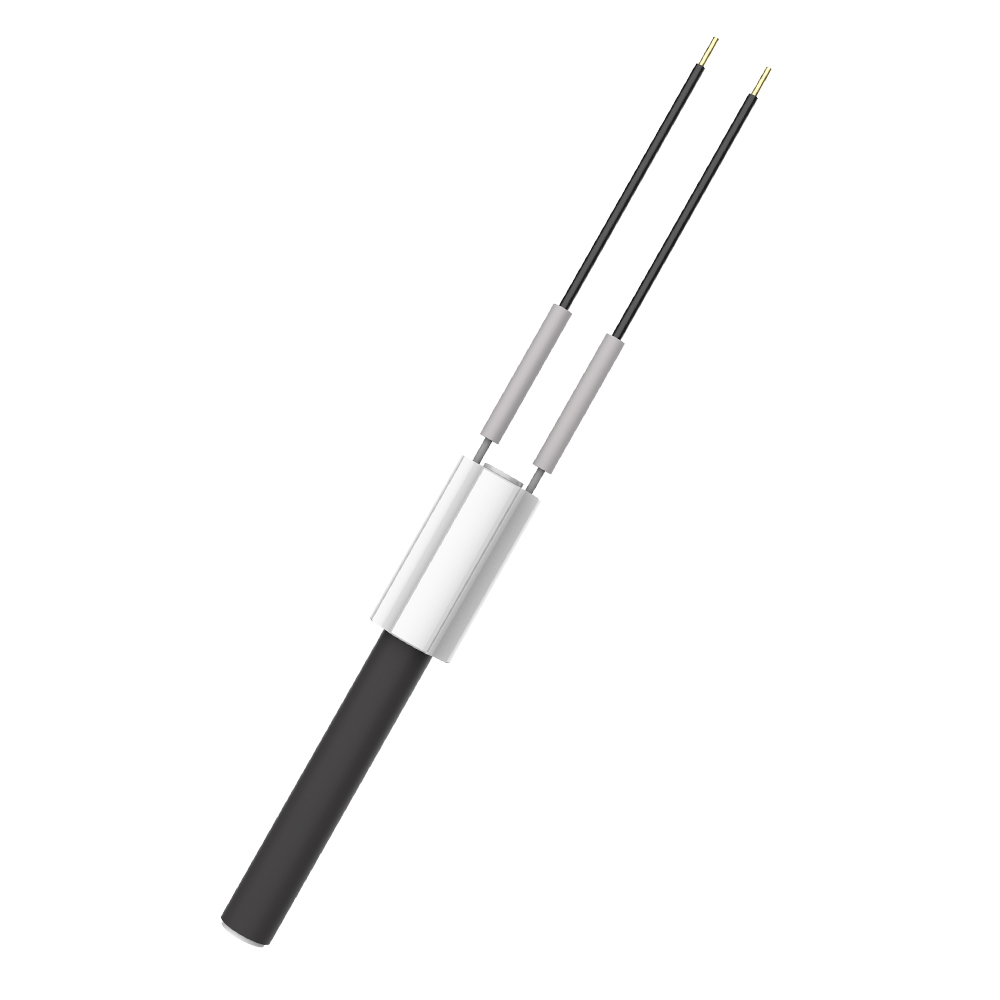

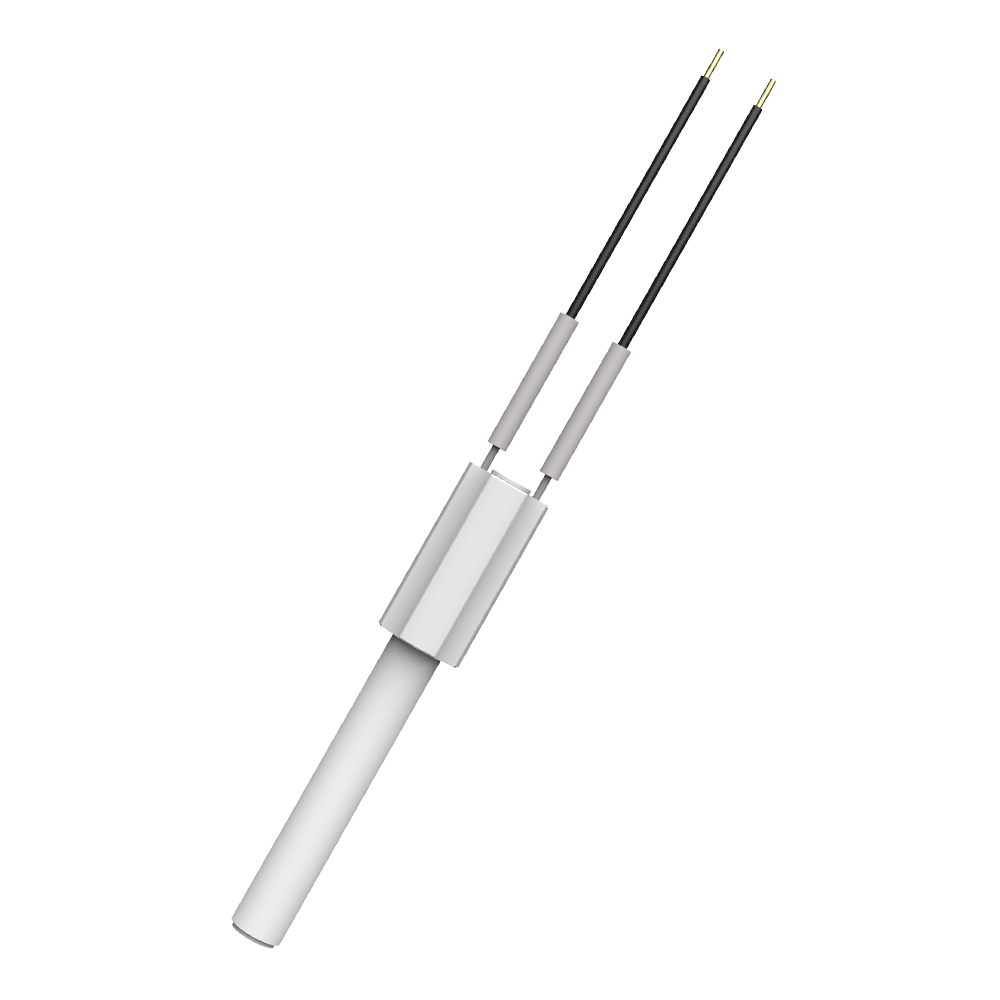

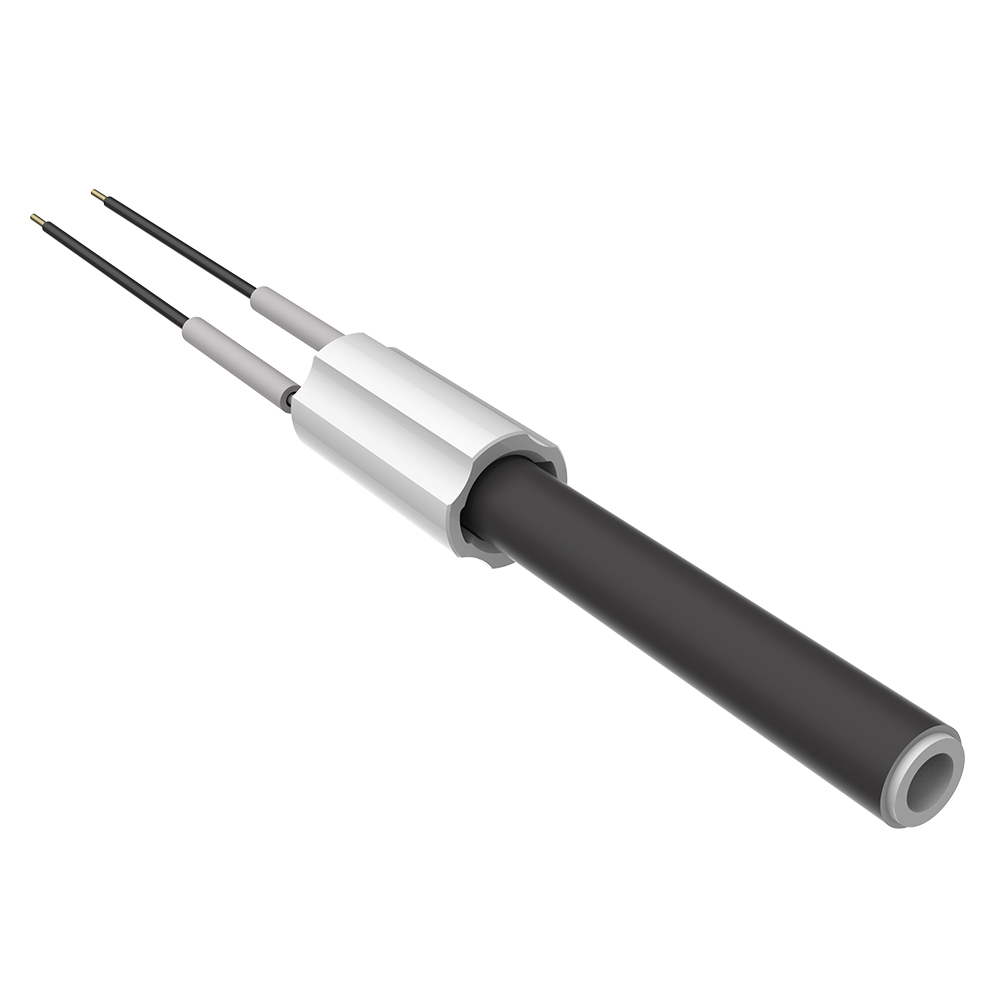

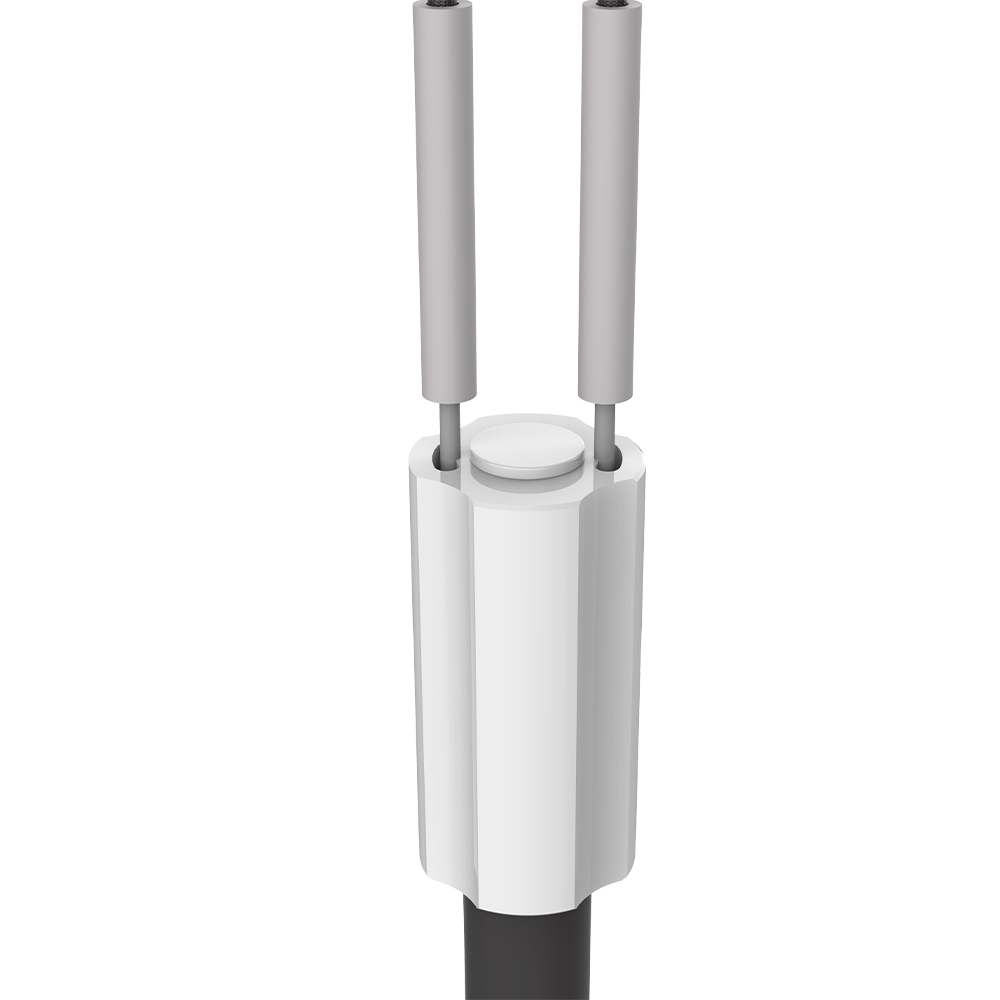

HF1309 Series Ceramic Igniter

Name: HF1309 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1309 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1309 Series

The HF1309 Series is a durable hot surface ignitor designed for industrial heating systems requiring precise ignition control. This furnace ignitor replacement provides fast startup and reliable operation with advanced ceramic materials.

Ask for a Solution PDF Format

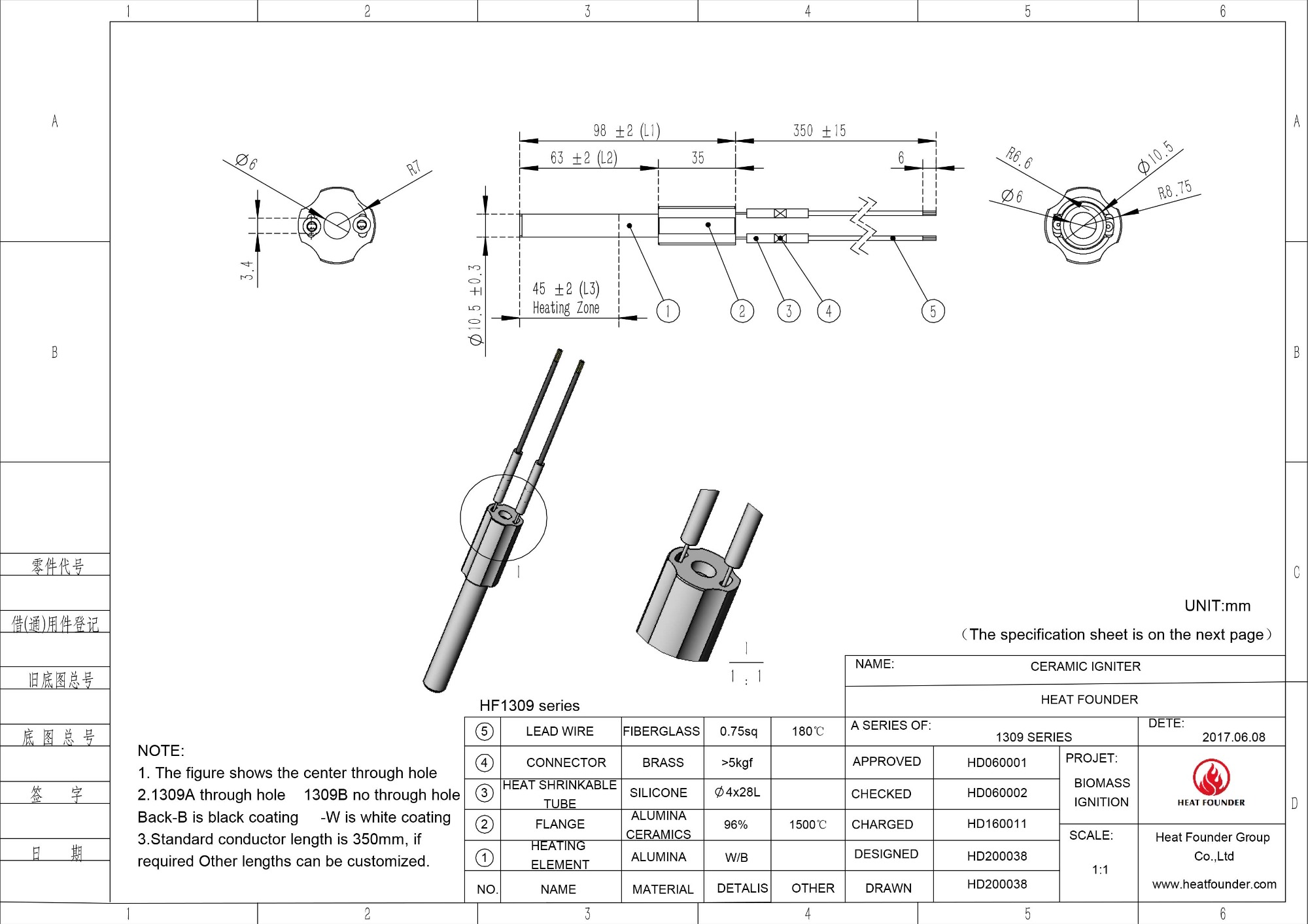

Description DRAWING

Functional Role and Target Market Integration
The HF1309 Series operates as a vital igniter for furnace systems, tailored for industrial clients requiring consistent ignition performance in pellet stoves, biomass boilers, and gas burners. Engineers and procurement managers benefit from its rapid ignition cycles and versatility across heating platforms. The design addresses the needs of environments demanding highly reliable startup components, ensuring seamless system compatibility with diverse power ratings and flange options. This furnace ignitor solution supports configurations requiring quick and stable ignition, mitigating downtime and enhancing operational efficiency for heating system manufacturers and maintenance providers.

Technical Features and Measurable Specifications
Manufactured with 96% alumina ceramic, the HF1309 Series achieves thermal tolerance up to 1050°C, making it a robust hot rod igniter environment component. Voltages of 120V and 230V and power outputs between 130W to 250W allow for application-specific customization. Its ignition time of 40 to 60 seconds ensures accelerated heating system activation, reducing energy waste. Flange construction options include ceramic, stainless steel, and copper, with tailored designs for system integration. Quality certifications including SGS and ISO9001 enforce durability and safety standards, verifying the igniter’s capability to withstand prolonged thermal cycles and operational stress in industrial furnace and ceramic heater assemblages.

Industry Applications and Practical Deployment
Designed for a broad scope of heating applications, the HF1309 Series excels in pellet stove ignition, biomass and gas burner systems, plus specialty environments such as industrial ceramic heater equipment. It functions effectively within fuel cell heating, agricultural particle combustion, and petroleum processing ignition scenarios, delivering stable performance where ignition reliability is critical. By integrating the igniter, manufacturers achieve compliance with operational safety and environmental standards, reducing failure incidences and extending maintenance intervals. This product’s compatibility with furnace ignitor replacement programs ensures minimal disruption during servicing and upgrades across commercial and industrial heating infrastructures.

Product Advantages

Structural and System Design Benefits

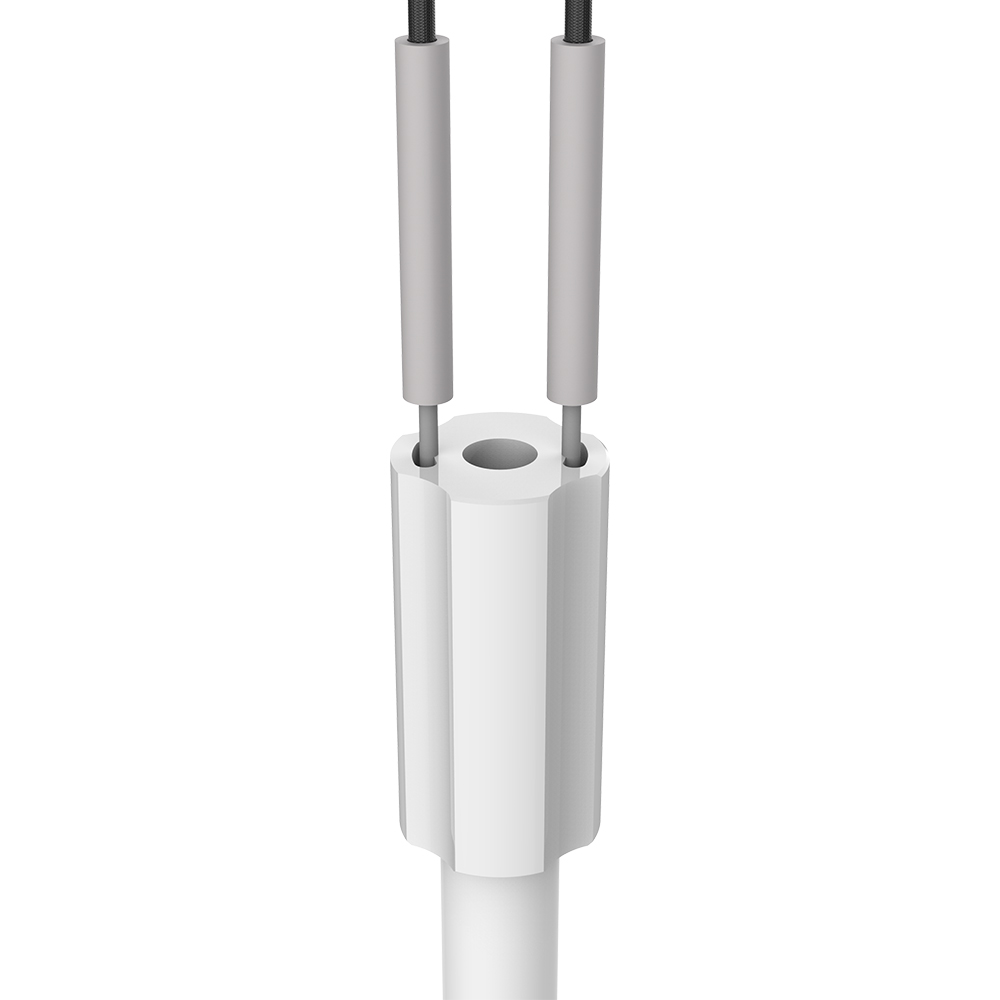

The HF1309 Series features a modular design adaptable to various heating assemblies, with flange options of ceramic, stainless steel, or copper enhancing installation flexibility. This flexibility supports integration into existing furnace systems requiring furnace ignitor replacement without extensive modification. Its core is formed from high-purity alumina ceramic, providing inherent chemical resistance and structural integrity under thermal cycling. The tailored length and dimensions allow precise fitment as a hot surface ignitor or hot rod igniter within combustion chambers. Such design refinement facilitates simplified system engineering, minimizing risk of installation errors and optimizing operational compatibility across different heating units.

Performance and Operational Advantages
Operationally, this igniter delivers consistent fast ignition, improving startup times and fuel efficiency in thermal management systems. The extended temperature range and power variability enable adaptation to diverse furnace conditions, maximizing performance across applications. Its rigorous compliance with certifications like ISO9001 ensures reliability and user safety, important for industrial operators and maintenance teams managing furnace ignitor replacement cycles. By reducing ignition failure rates, it lowers unscheduled downtime and maintenance efforts, ultimately decreasing total cost of ownership. The HF1309 Series also supports improved heat transfer uniformity in ceramic heater assemblies, contributing to overall system energy efficiency.

Name	Ceramic Igniter
Model	HF1309 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	130W 150W 250W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)

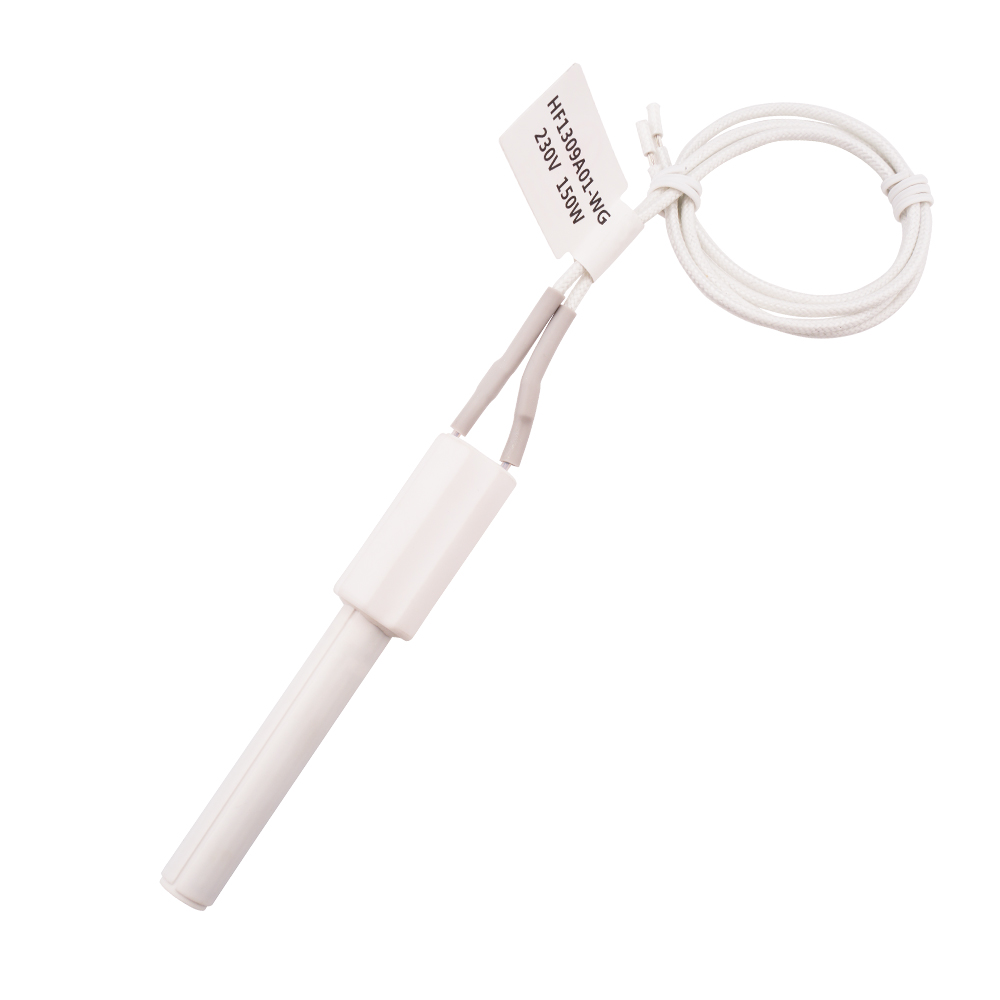

HF1309A01-W	230	150	10.5	93	58	45	17.5
HF1309B01-B	230	150	10.5	93	58	45	17.5
HF1309B01-W	230	150	10.5	93	58	45	17.5
HF1309A01-B	230	150	10.5	93	58	45	17.5
HF1309B02-W	120	130	10.5	93	58	45	17.5
HF1309A02-B	120	130	10.5	93	58	45	17.5
HF1309B02-B	120	130	10.5	93	58	45	17.5
HF1309A02-W	120	130	10.5	93	58	45	17.5
HF1309A03-W	230	250	10.5	93	58	45	17.5
HF1309B03-B	230	250	10.5	93	58	45	17.5
HF1309B03-W	230	250	10.5	93	58	45	17.5
HF1309A03-B	230	250	10.5	93	58	45	17.5

Use Scenarios

Pellet Stove Ignition in Sustainable Thermal Systems
In the pellet stove manufacturing sector, the HF1309 Series acts as a critical ignition component driving efficient fuel combustion processes. Pellet stoves require rapid and stable flame initiation to maintain consistent heating while minimizing emissions. This hot surface ignitor enables a controlled ignition sequence ensuring clean burning of biomass fuels, which is essential for compliance with environmental regulations. Its heat-resistant ceramic composition withstands repeated thermal cycles, fitting seamlessly into the pellet stove’s combustion chamber assembly. The igniter’s adaptability to multiple voltage and power configurations allows integration with various stove models, supporting manufacturers’ efforts to optimize reliability and reduce warranty claims.

Gas Burner Ignition in Industrial Heating Equipment
For industrial gas burners used in manufacturing and processing plants, the HF1309 Series provides reliable startup performance crucial for maintaining production continuity. As an igniter for furnace components, it ensures dependable flame establishment under variable operational conditions, including rapid cycling demands. The wide temperature tolerance and diverse flange options allow engineering integration within gas burner systems designed for harsh industrial environments. Its rapid ignition capability reduces fuel consumption and operational fluctuations while ensuring compliance with industry safety standards. This integration supports system operators in minimizing process interruptions and maintaining controlled, efficient heating throughout manufacturing workflows.

FAQ

What flange materials are available for the HF1309 Series igniter?
We offer the HF1309 Series igniter with flange options including ceramic, stainless steel, copper, and customized materials, allowing you to select the reliable fit for your heating system’s installation requirements.

Can the HF1309 Series serve as a reliable furnace ignitor replacement?
Yes, our HF1309 Series igniter is designed to serve as a durable and efficient furnace ignitor replacement, engineered with high-purity alumina ceramic to ensure robust performance in industrial and residential furnaces.

What voltage and power configurations do you provide for the HF1309 igniter?
Our HF1309 Series supports multiple voltage options, including 120V and 230V, with power ratings of 130W, 150W, and 250W. This range ensures compatibility with various heating systems requiring a dependable hot surface ignitor.

How quickly can you deliver HF1309 Series samples and bulk orders?
We ship HF1309 Series samples typically within 5 working days. For mass production orders, the delivery time is around 12 working days, ensuring timely supply to meet your project schedules and operational needs.
