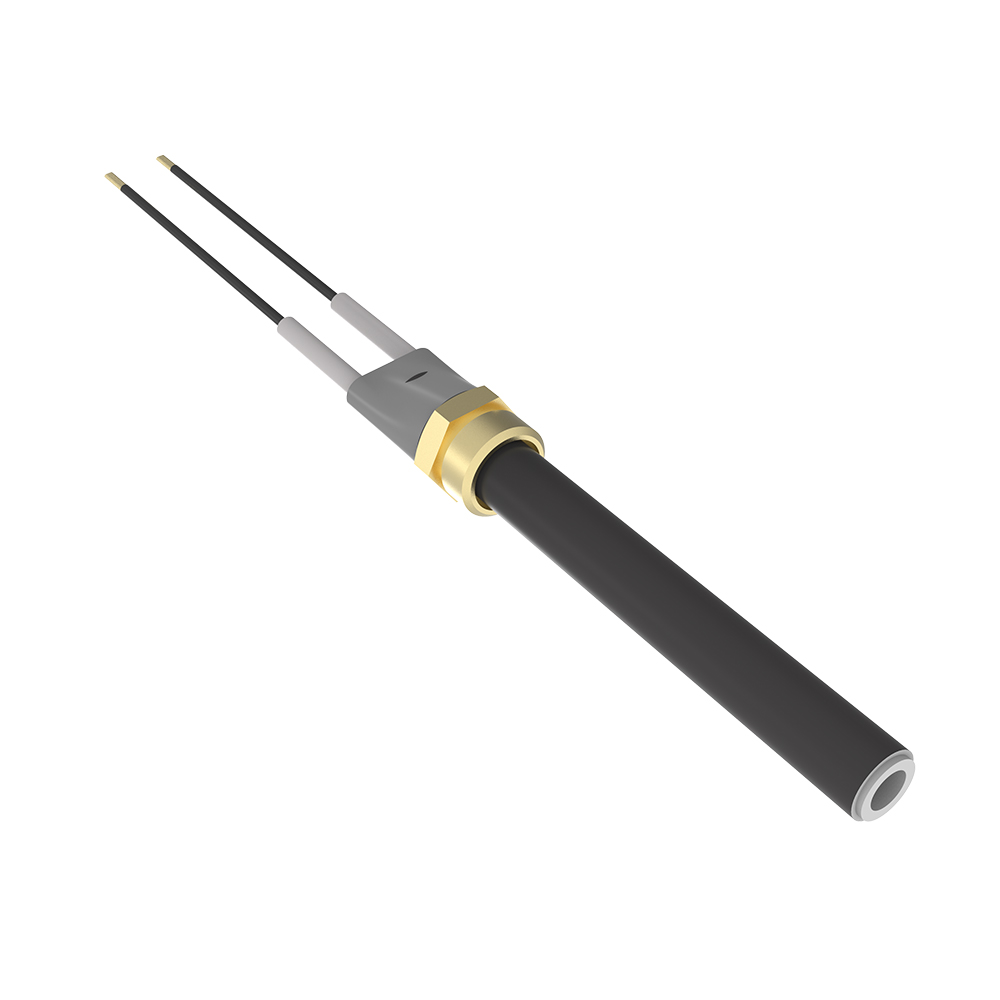

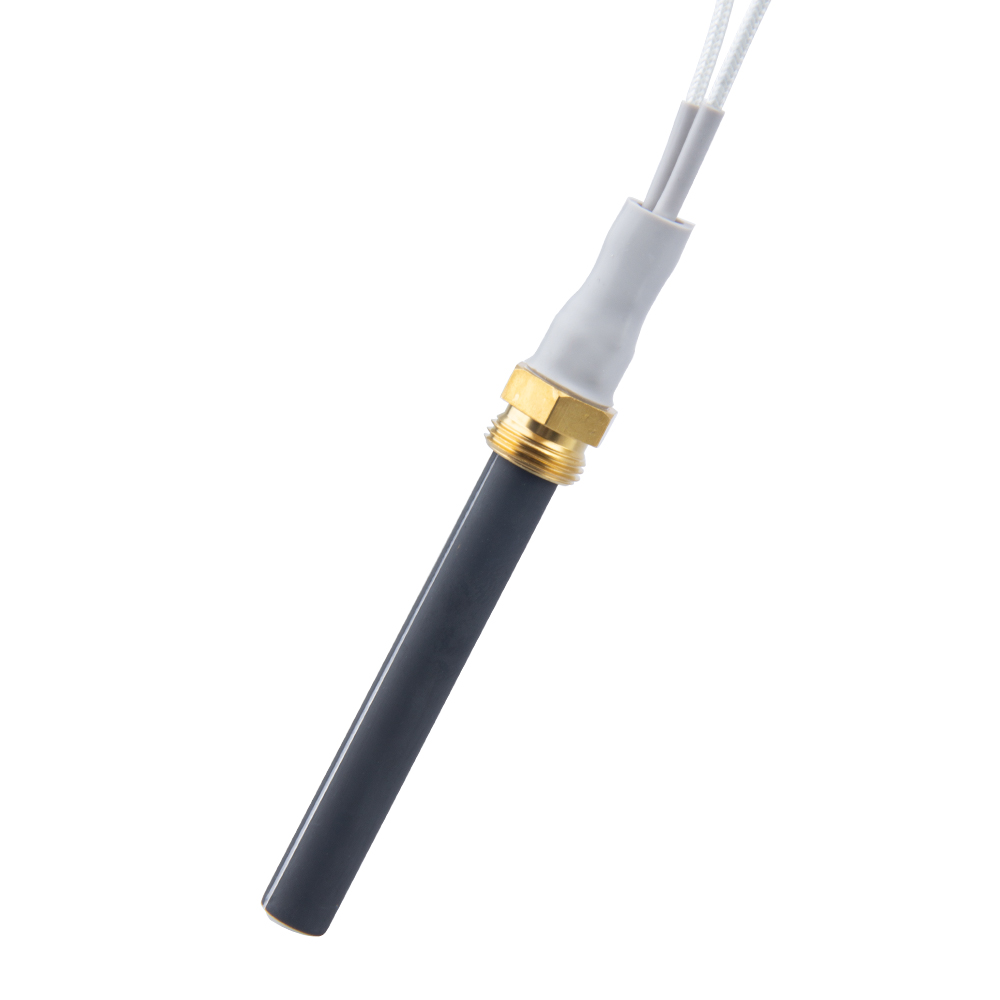

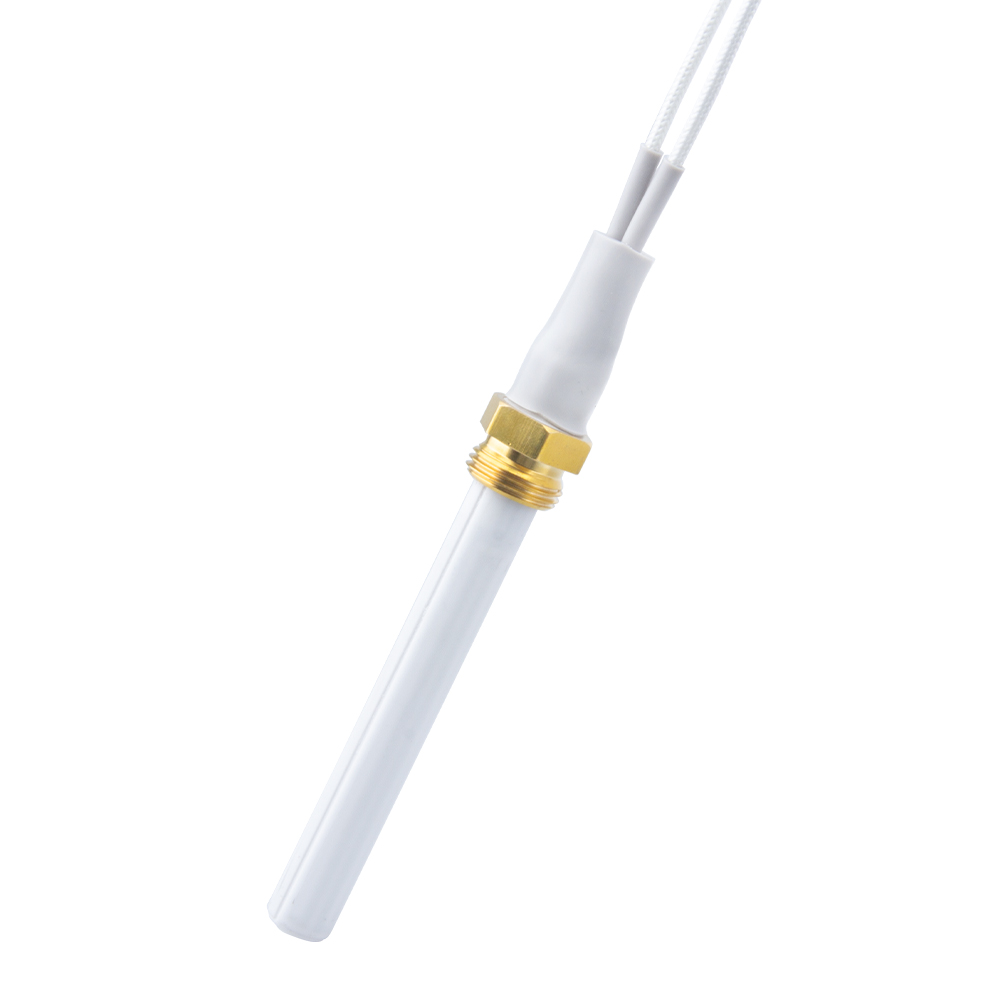

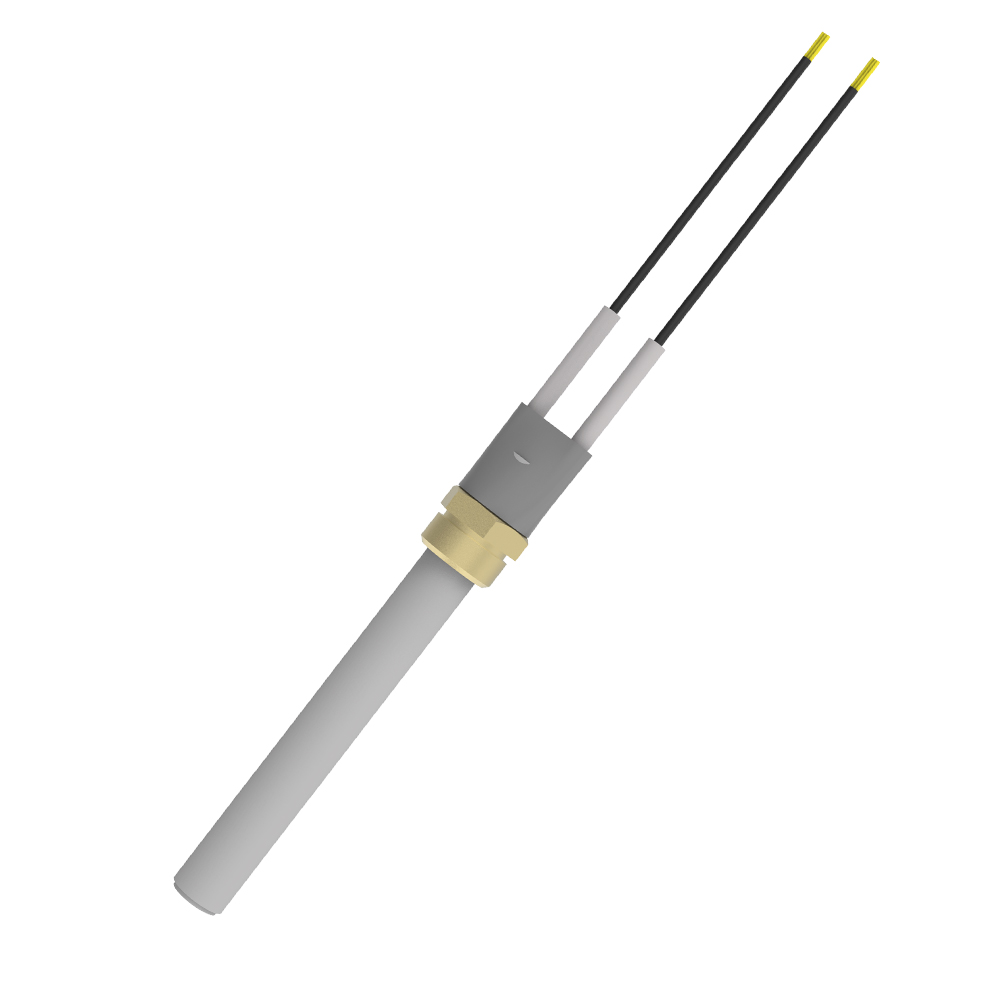

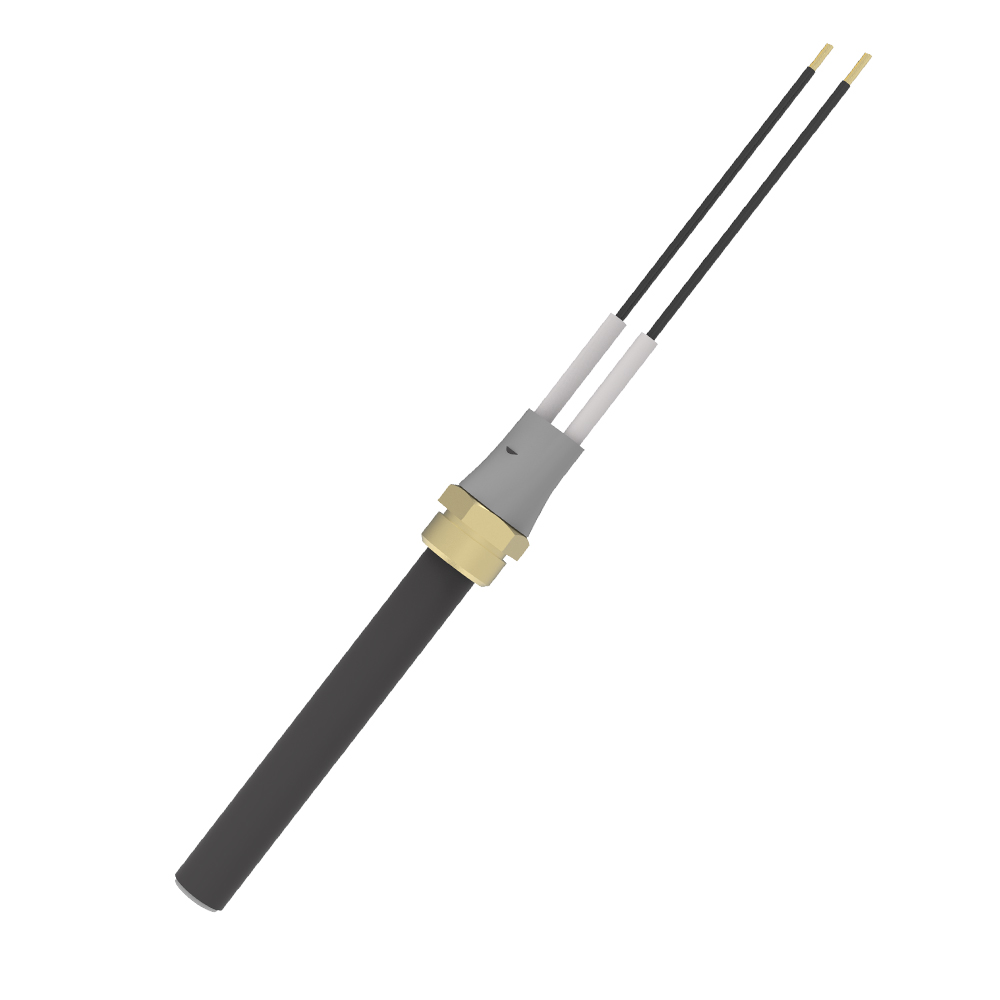

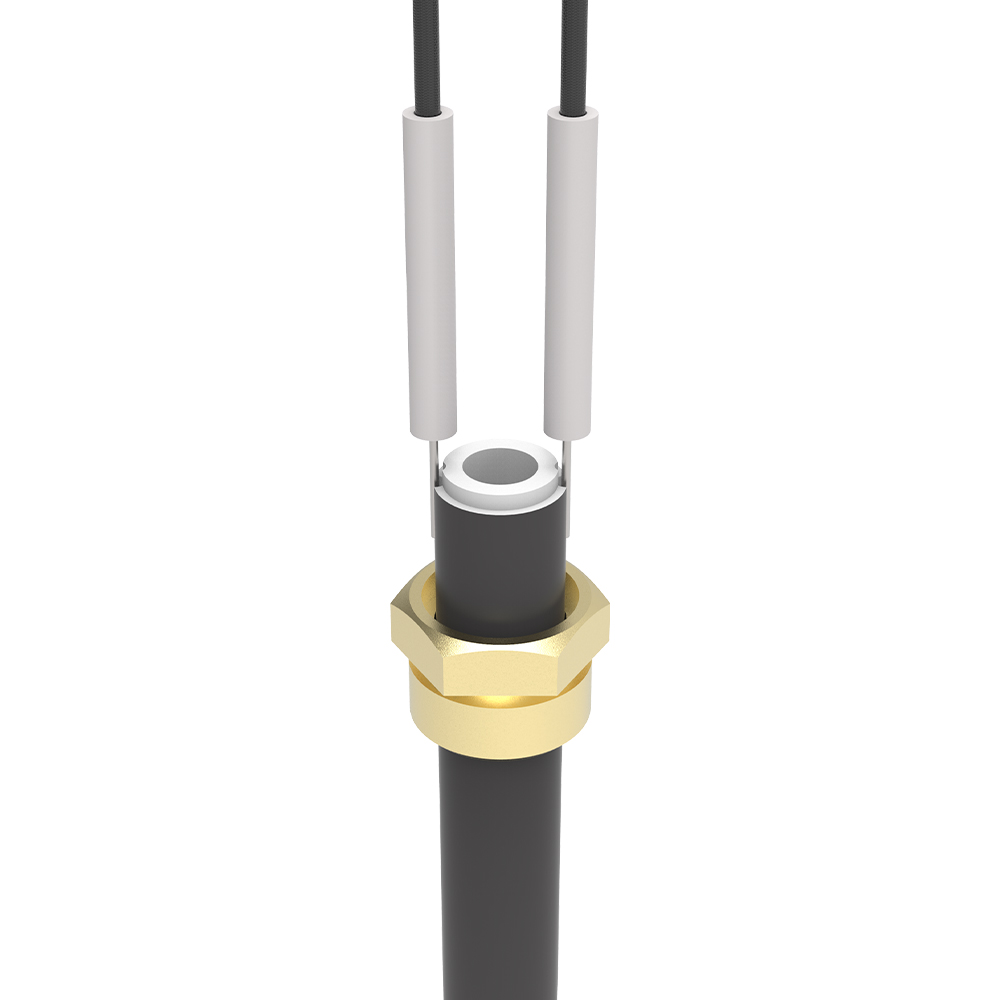

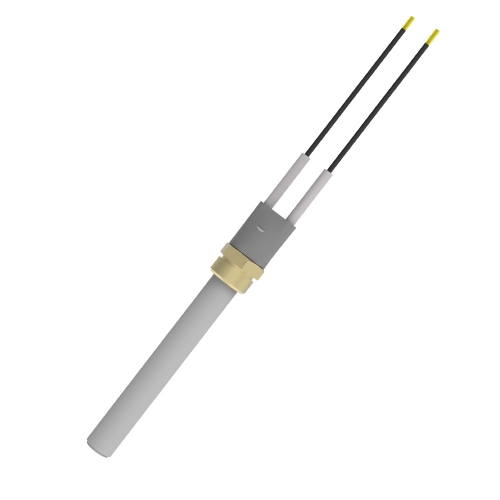

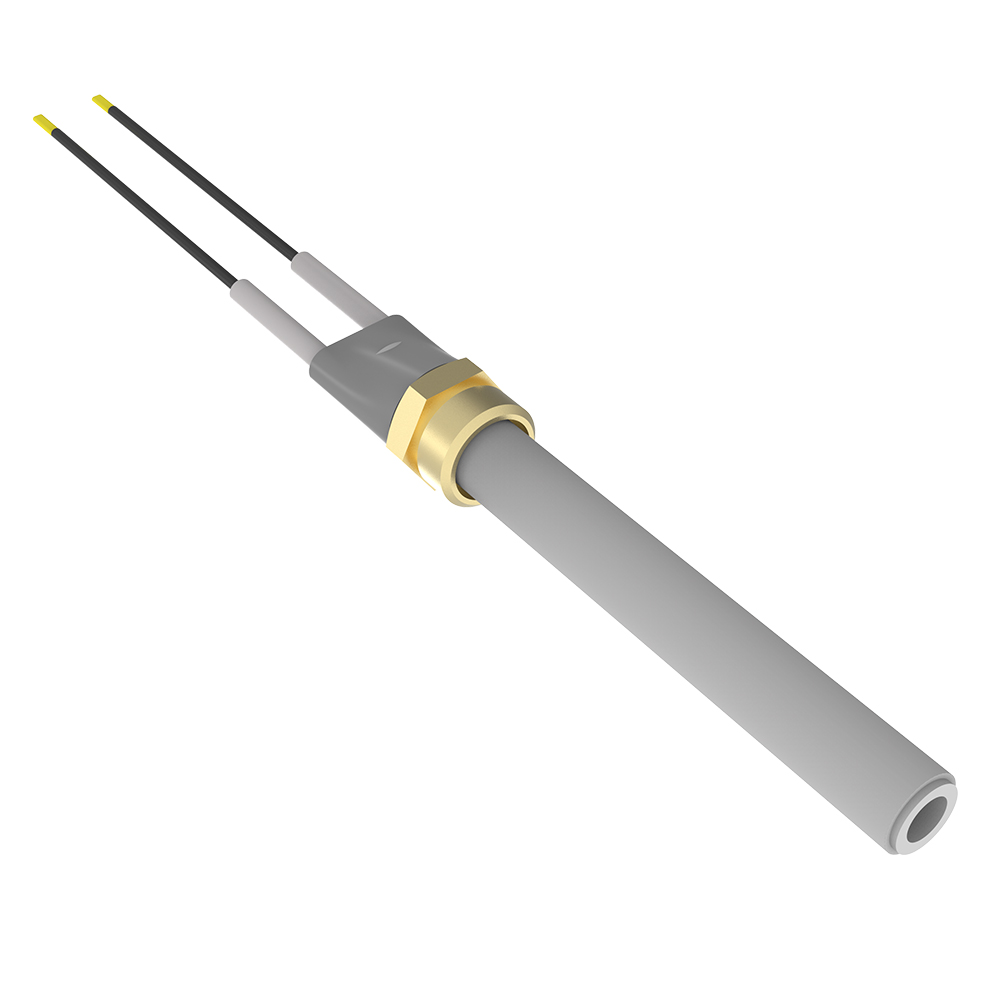

HF1307 Series Ceramic Igniter

Name: HF1307 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1307 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1307 Series

The HF1307 Series offers durable ignition with a high-performance hot surface ignitor built from 96% alumina ceramic. It ensures reliable operation as a precise furnace ignitor replacement for industrial heating systems.

Ask for a Solution PDF Format

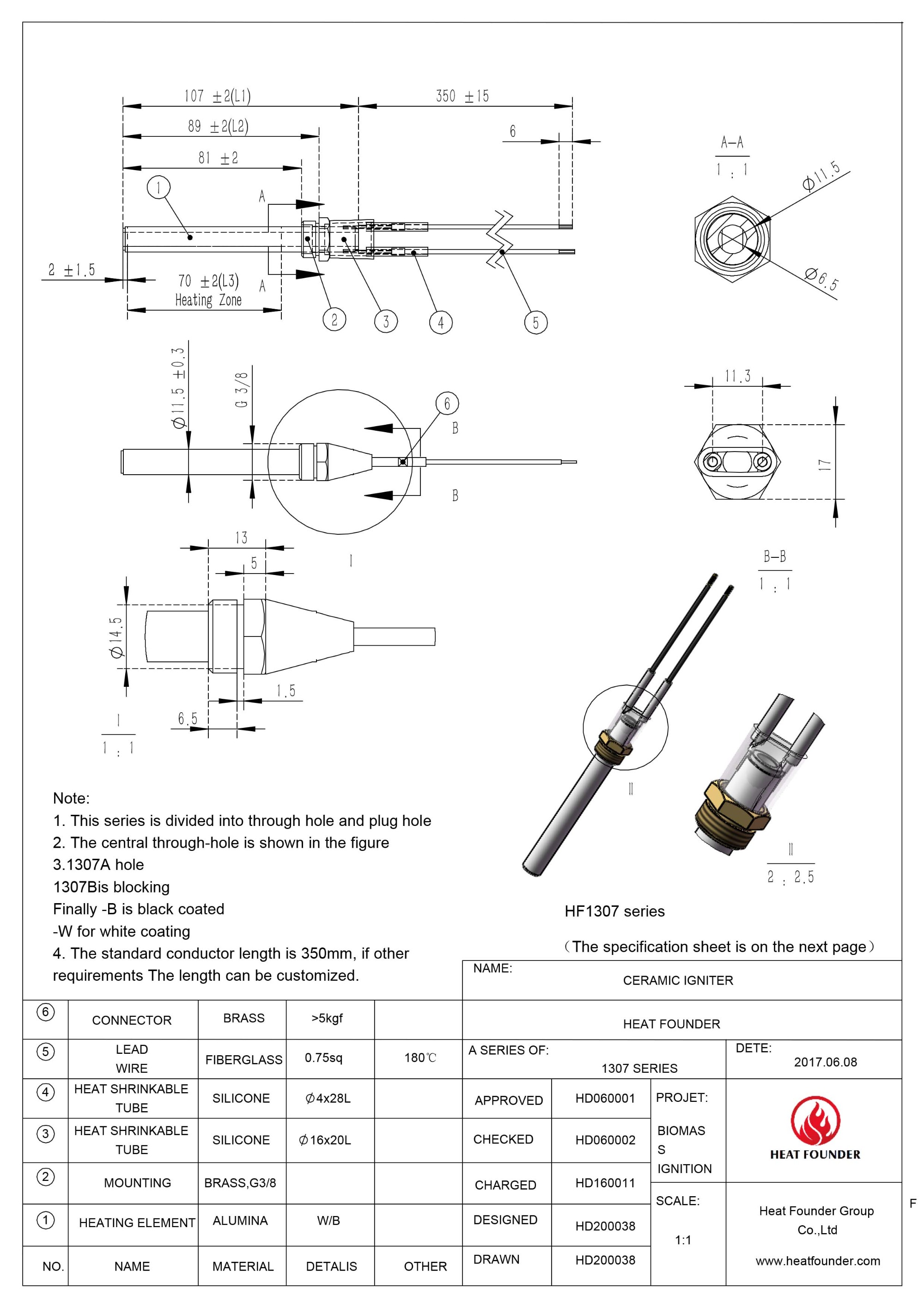

Description DRAWING

Optimal Ignition Solution for Industrial Heating Systems
The HF1307 Series Ceramic Igniter serves as a robust igniter for furnace and other heating applications requiring reliable ignition sources. Engineered for industrial and commercial heating equipment manufacturers and system integrators, this product delivers stable ignition performance, enabling streamlined combustion start-up processes. Its role as a furnace ignitor facilitates safe and efficient ignition in furnaces, boilers, and pellet burners, optimizing operational reliability and minimizing downtime in demanding environments.

Advanced Material Composition and High Thermal Durability
Constructed using 96% alumina ceramic, the HF1307 Series features superior thermal stability capable of withstanding temperatures from 30°C to 1050°C (86°F to 1922°F). Available with selectable power ratings of 260W or 300W at 120V or 230V voltage, the igniter guarantees consistent performance under various electrical conditions. Customizable flange options from ceramic, stainless steel, copper, or specialized materials allow precise system integration. This ceramic heater component’s ignition time of 40-60 seconds ensures rapid and repeatable warm-up essential for efficient furnace operation.

Versatile Application Across Diverse Combustion Systems
The HF1307 Series is applicable in multiple industry segments including biomass boilers, gas and pellet stoves, pellet BBQ grills, and specialized medical heating devices. As a critical element in hot surface ignition systems, it supports combustion initiation for renewable energy heating and conventional gas appliances alike, improving ignition reliability and safety compliance. Its certifications from ISO9001, SGS, BV, and TUV confirm conformity to international standards, promoting confidence in deployment as a dependable hot rod igniter or furnace ignitor replacement within complex heating system architectures.

Product Advantages

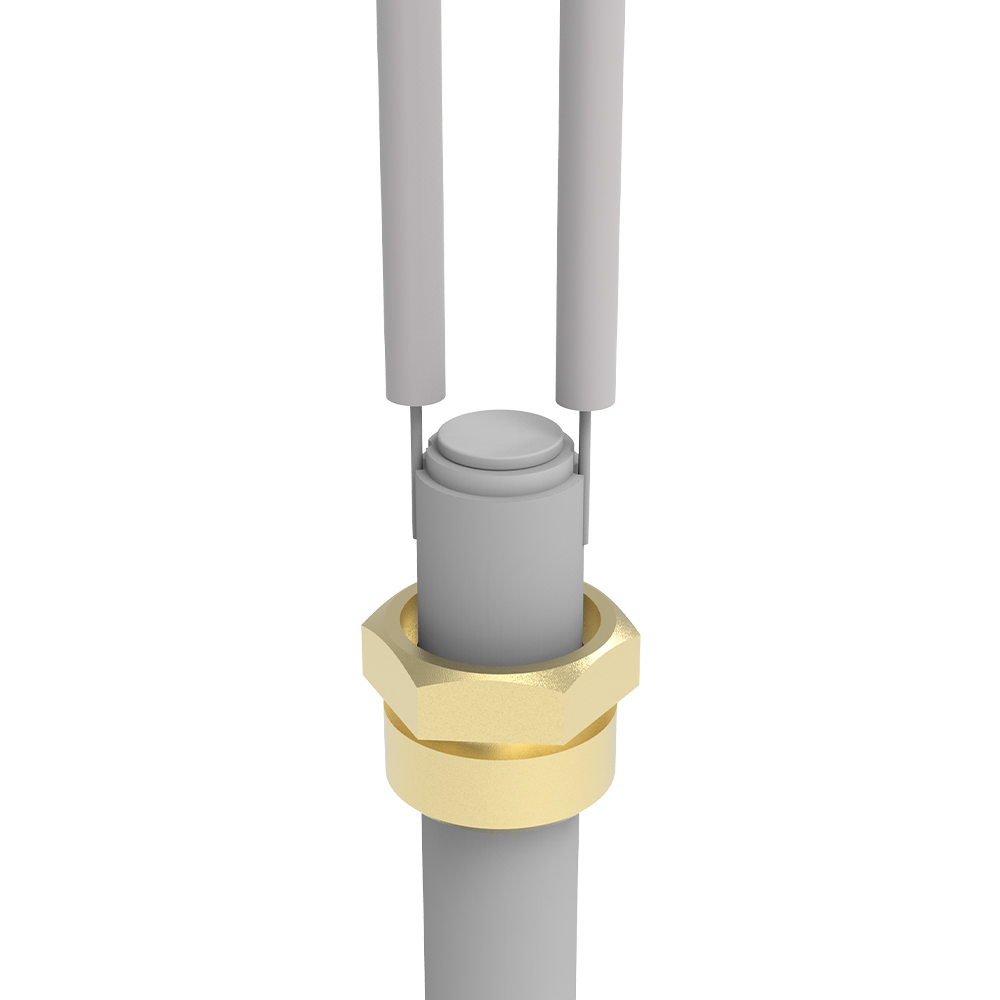

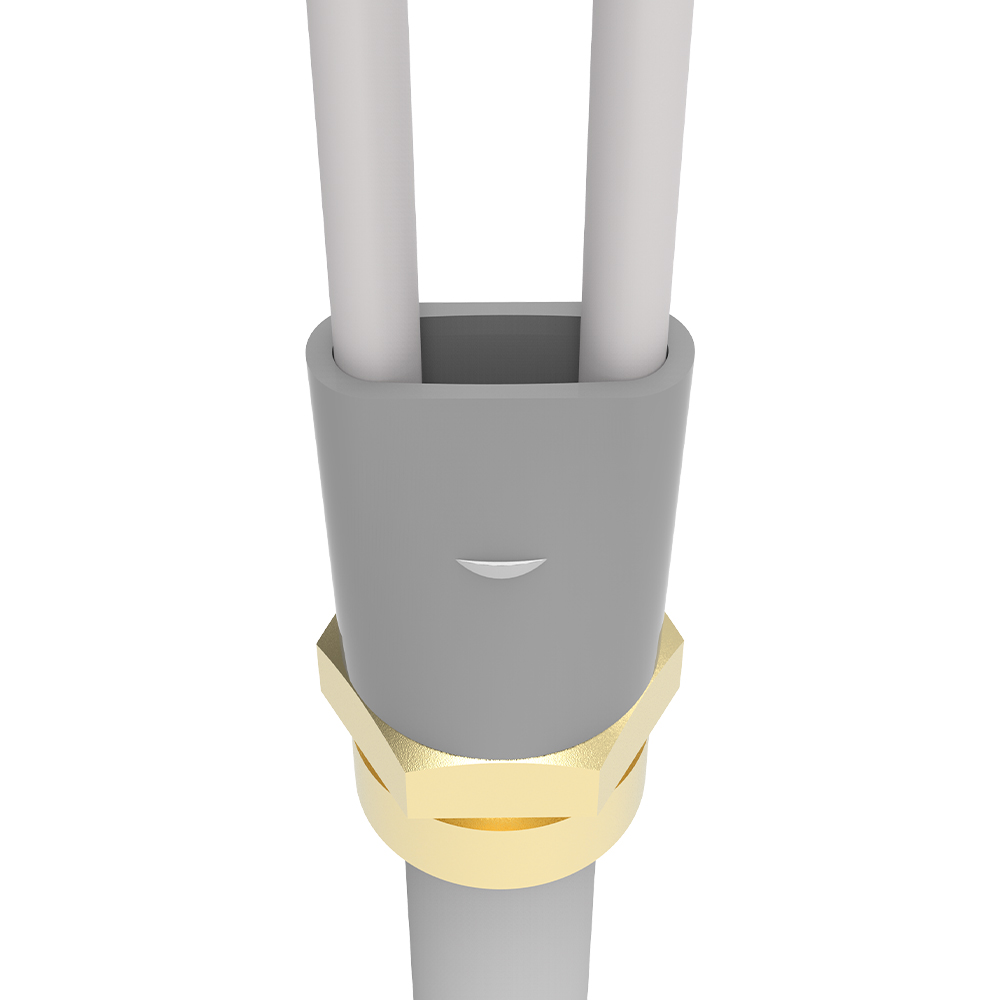

Modular Design Facilitating System Integration
The HF1307 Series highlights a modular design philosophy prioritizing adaptability with multiple flange options—ceramic, stainless steel, copper, or customized materials—allowing seamless integration with a range of heating equipment. Its construction using 96% alumina ceramic grants exceptional thermal endurance, reducing failure rates in high-heat environments. Such design considerations enable engineers to specify this hot surface ignitor for retrofit or OEM configurations where precise dimensioning and material compatibility are critical to overall system performance and longevity.

Consistent High Performance and Operational Reliability
Performance efficiency is underscored by the HF1307's capacity to deliver reliable ignition within 40-60 seconds while enduring harsh thermal cycling. The igniter’s power options and voltage flexibility facilitate use across global grids, improving operational versatility. From a user perspective, this ensures a lower incidence of premature failure, less maintenance, and enhanced furnace uptime. As a robust furnace ignitor replacement, it supports predictable ignition sequences critical to reducing emissions and optimizing fuel combustion across industrial heating workflows.

Name	Ceramic Igniter
Model	HF1307 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	260W 300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1307A01-W	230	300	11.5	107	89	70	G3/8
HF1307B01-W	230	300	11.5	107	89	70	G3/8
HF1307A01-B	230	300	11.5	107	89	70	G3/8
HF1307B01-B	230	300	11.5	107	89	70	G3/8
HF1307A02-W	120	260	11.5	107	89	70	G3/8
HF1307B02-W	120	260	11.5	107	89	70	G3/8
HF1307A02-B	120	260	11.5	107	89	70	G3/8
HF1307B02-B	120	260	11.5	107	89	70	G3/8

Use Scenarios

Ignition in Biomass and Pellet Heating Applications
In biomass boiler and pellet burner environments, controlled ignition sequences are essential for safety and efficiency. The HF1307 Series operates as an effective igniter for furnace systems, initiating reliable combustion via hot surface heating even under variable environmental conditions. Its temperature tolerance and ignition time compliance optimize startup cycles, reducing fuel waste and operational downtime. Integration with automated control systems ensures seamless initiation, meeting strict regulatory standards for emissions and operational safety in renewable energy heating infrastructures.

Application in Commercial Gas Furnaces and Pellet Stoves
Within commercial gas furnace systems and pellet stoves, the HF1307 functions as a dependable hot rod igniter providing consistent heat to trigger fuel ignition. Its power configurations support compatibility with diverse electrical setups while flange customization allows fitting various appliance models. The product’s certified quality ensures conformity with safety regulations such as ISO and BSCI standards, making it integral for manufacturers seeking reliable furnace ignitor replacement components that enhance system performance and compliance in commercial and residential heating contexts.

FAQ

What flange materials are available for the HF1307 Series Ceramic Igniter?
We offer adjustable flange materials including ceramic, stainless steel, copper, and customized options tailored to your specific requirements. This flexibility ensures seamless integration of our furnace ignitor into diverse heating systems without compromise.

Can the HF1307 Series Ceramic Igniter be used in both residential and commercial heating systems?
Yes, our hot surface ignitor is designed for versatile applications, including biomass boilers, pellet stoves, gas burners, and commercial heaters, providing reliable ignition performance across various environments and fuel types.

What is the typical lead time for sample and mass production orders of the HF1307 igniter?
Our standard lead time for sample units is about 5 working days, while mass production orders usually require 12 working days. We maintain strict quality standards and timely delivery to support your project schedules.

Does the HF1307 Series Ceramic Igniter comply with international quality and safety certifications?
Absolutely. We manufacture under rigorous quality control with certifications including BSCI, ISO9000/14000, BV, TUV, SGS, and FSC, ensuring that every igniter for furnace meets global standards for safety and durability.
