HF1306 Series Ceramic Igniter

Name: HF1306 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1306 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1306 Series

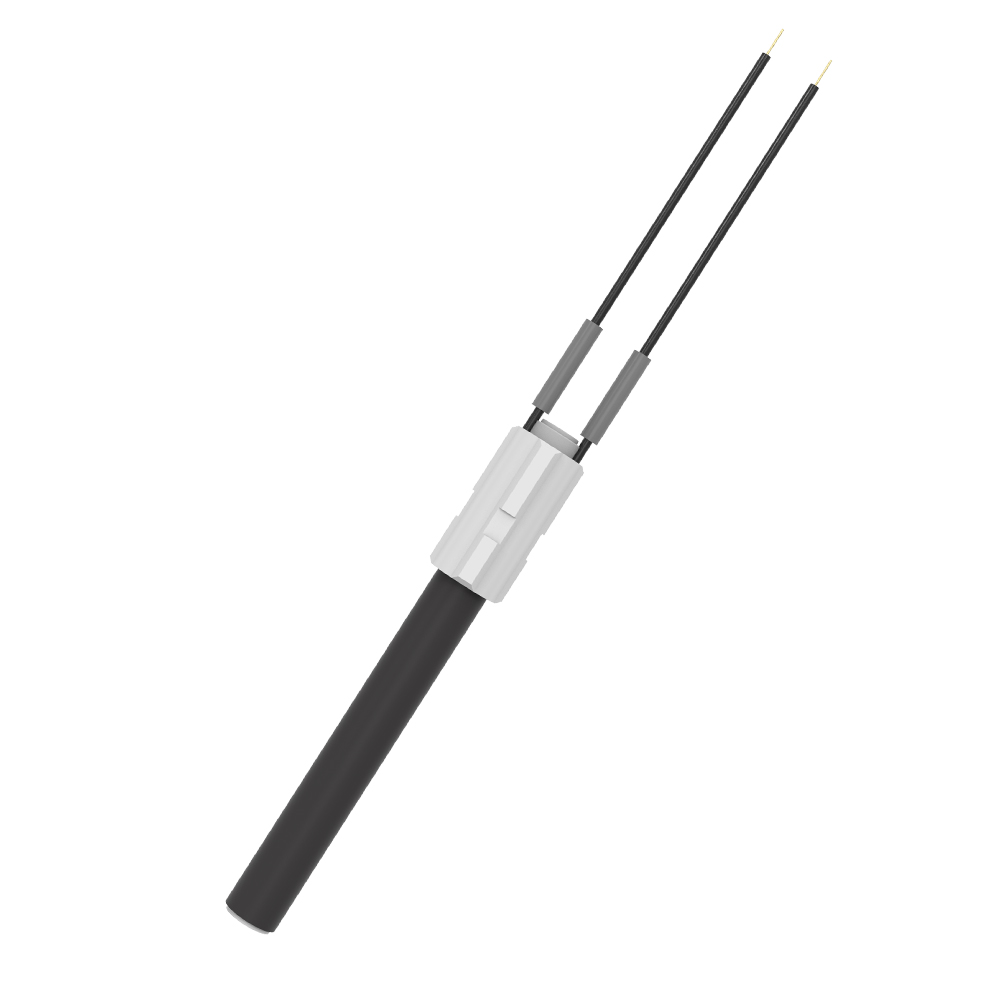

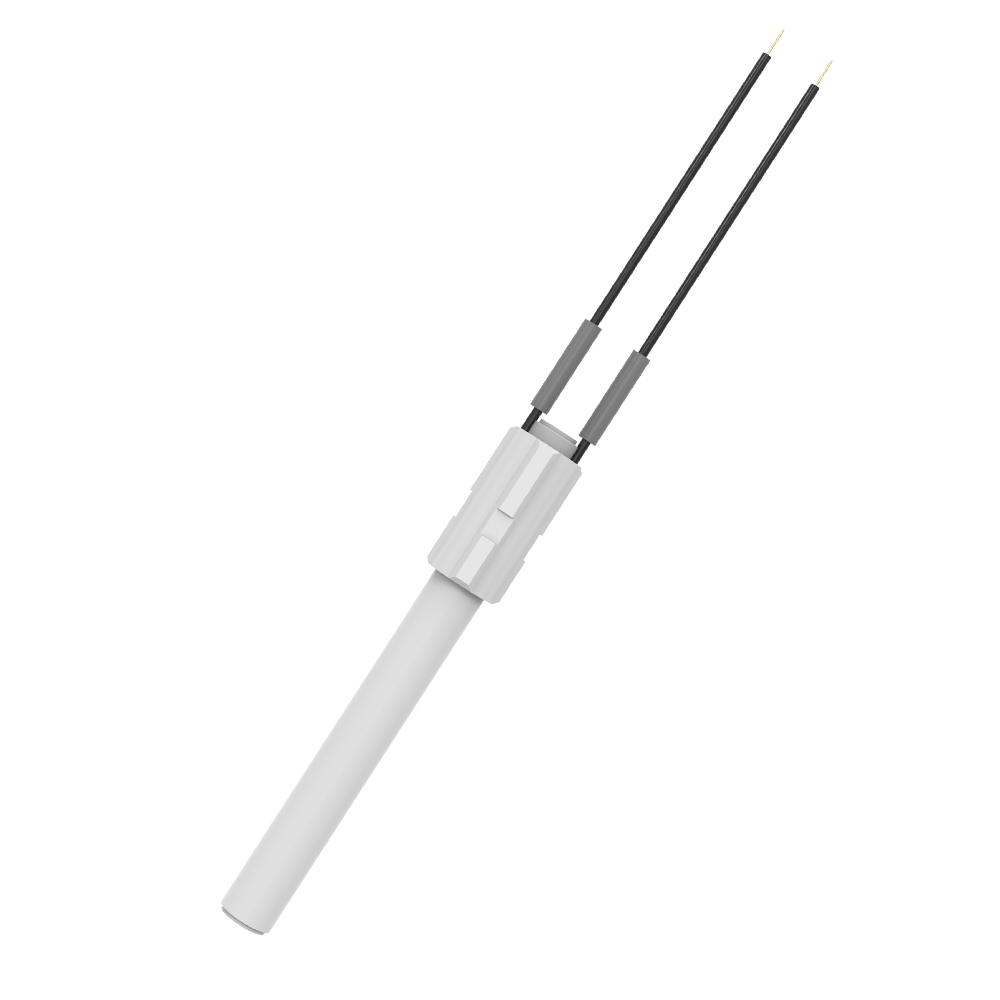

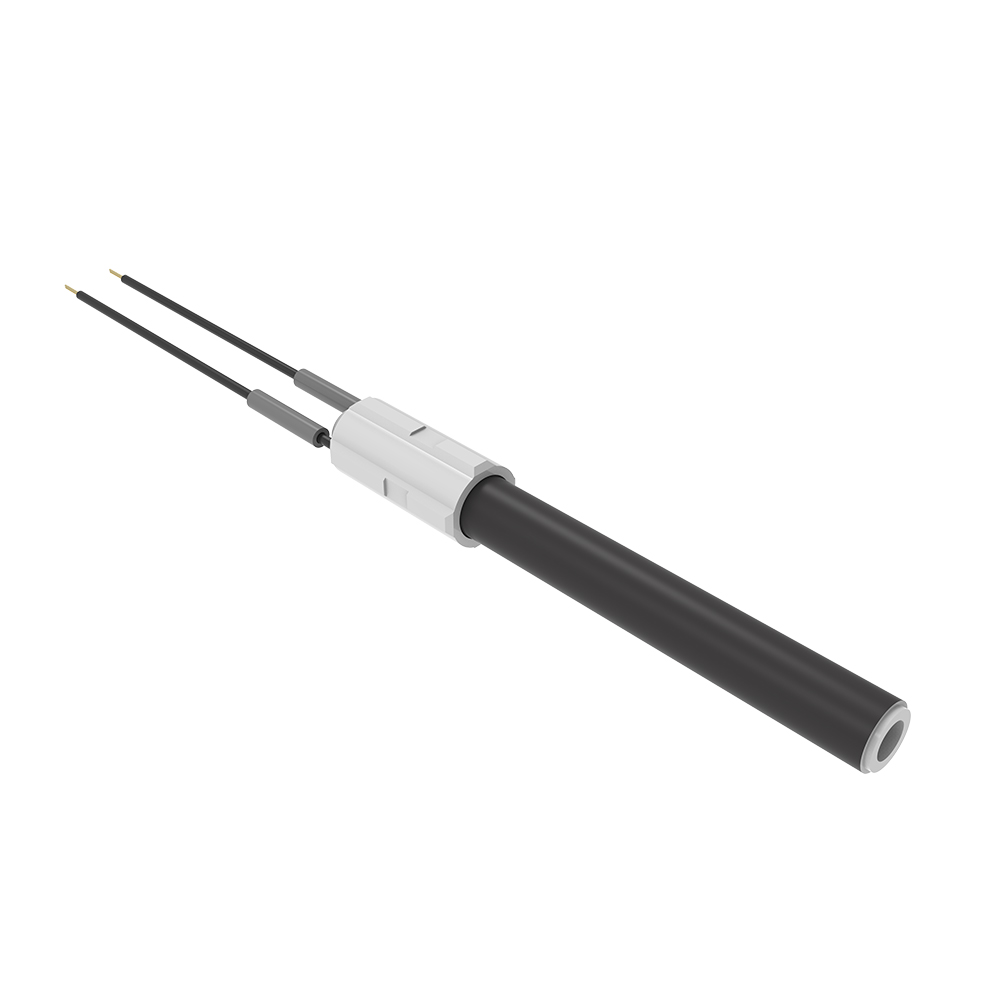

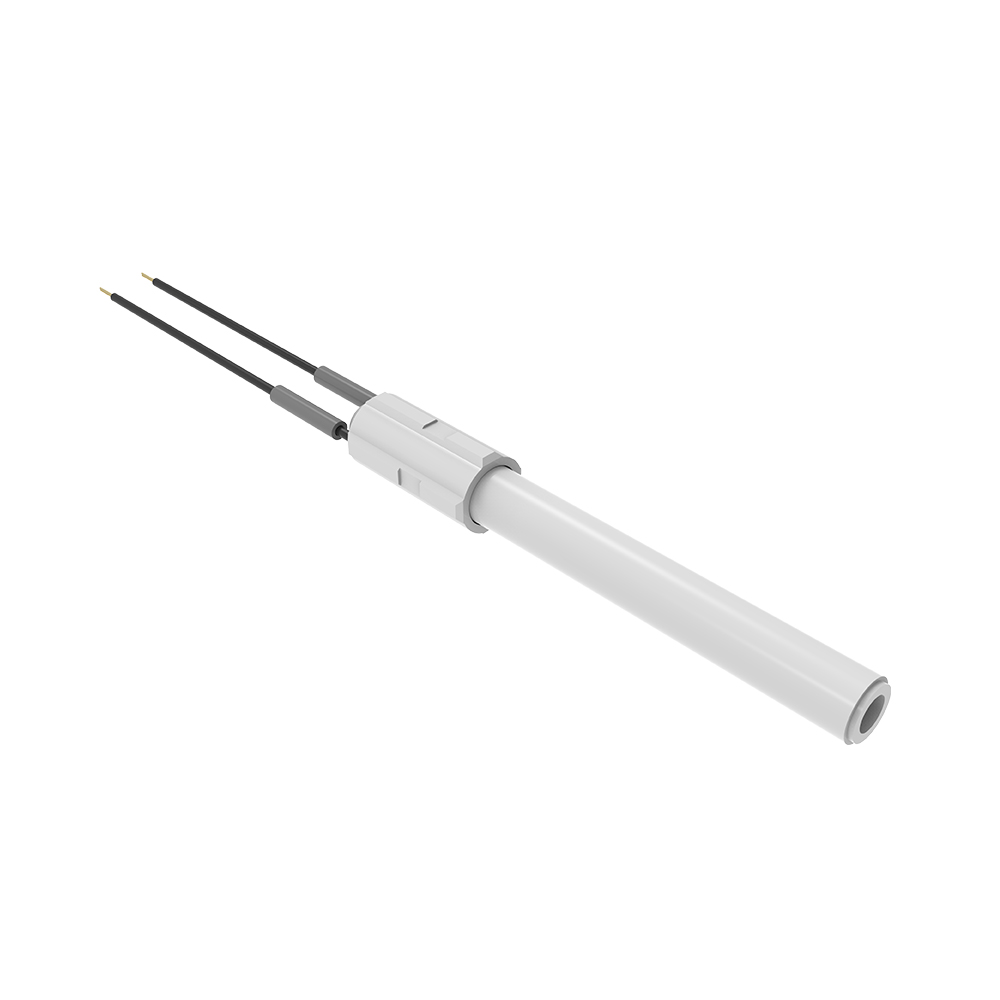

The HF1306 Series Ceramic Igniter provides reliable ignition with fast startup time, featuring durable 96% alumina ceramic construction. Ideal for gas oven igniter and hot surface ignitor applications needing efficiency and longevity.

Ask for a Solution PDF Format

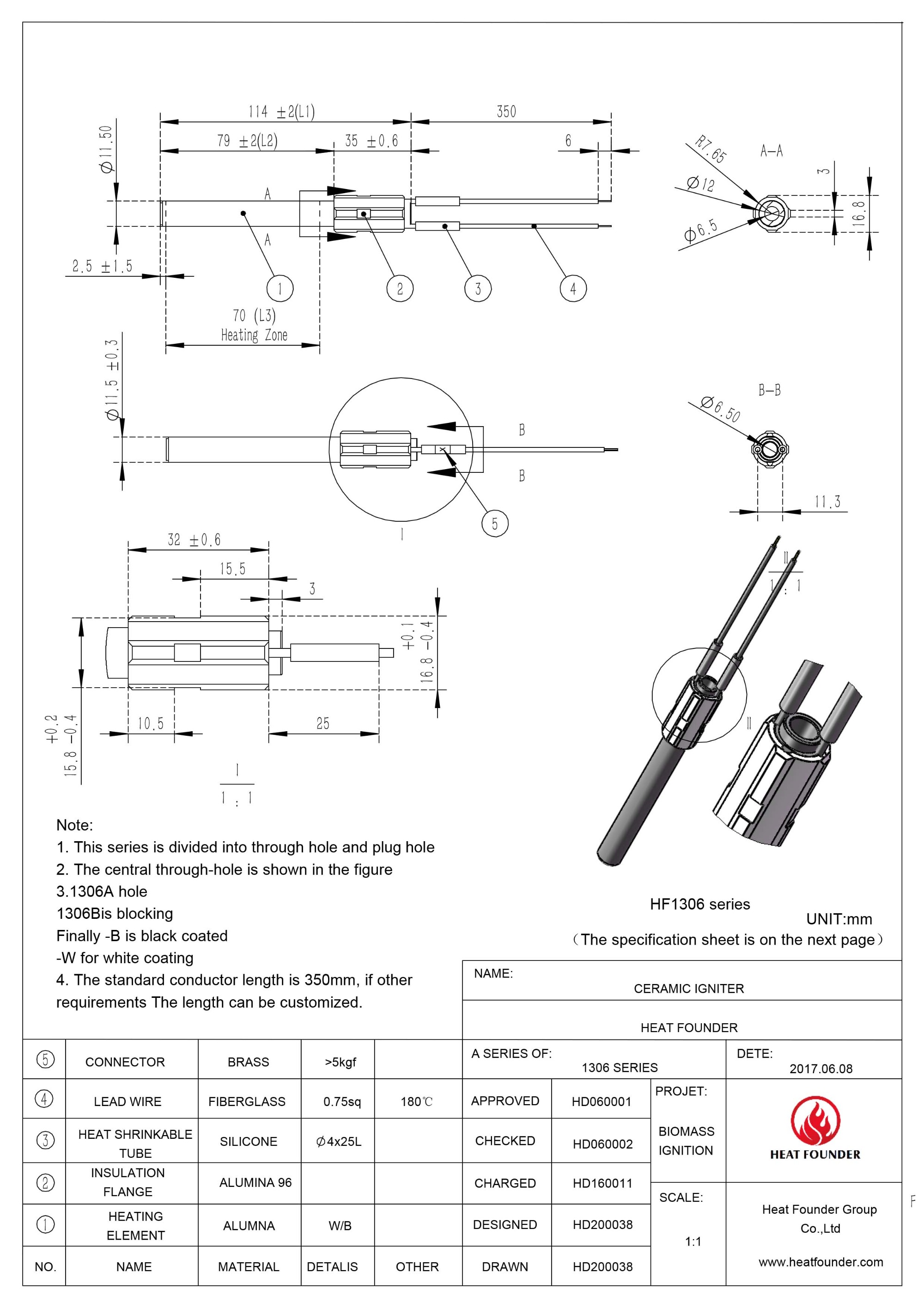

Description DRAWING

Targeted Solutions for Industrial Heating Systems
The HF1306 Series Ceramic Igniter is engineered specifically for industrial and commercial heating systems requiring robust hot surface ignition technology. Designed for applications including gas oven igniters, pellet burners, and stove ignition, it facilitates efficient startup sequences for equipment operators and engineers. This product meets the performance demands of manufacturers seeking dependable ignitor replacement components that integrate seamlessly into heating appliances. The targeted user base spans OEMs, heating system integrators, and maintenance professionals who prioritize operational reliability and system uptime in high-duty environments.

Advanced Material Composition and Electrical Characteristics
Constructed utilizing 96% alumina ceramic, the HF1306 igniter delivers exceptional thermal and mechanical stability within a temperature range of 30 to 1050 °C (86 to 1922 °F). Operating at 120V or 230V with power ratings of 260W or 300W, this hot surface ignitor provides consistent ignition within 40 to 60 seconds. The modular design allows flange customization using ceramic, stainless steel, copper, or client-specific materials to accommodate various installation specifications. As a ceramic heater element, its resilient structure ensures long service life under fluctuating thermal stresses, meeting international standards verified by ISO9001, SGS, BSCI, and TUV certifications.

Versatile Application Across Heating Technologies
The HF1306 Series igniter supports diverse industry requirements including biomass boilers, gas burners, pellet stoves, and BBQ grills by delivering rapid and reliable ignition control. It also finds use in specialized settings such as medical heating systems and agricultural particle burners, where ignition precision impacts process stability. Integrators benefit from its compatibility with HVAC systems and fuel cell spark ignition, facilitating integration into complex workflows. This versatility drives operational efficiency and regulatory compliance, positioning the ignitor replacement as an essential component for heating innovation across commercial and residential sectors.

Product Advantages

Structural and Modular Design Benefits
The HF1306 Series incorporates a structurally optimized ceramic heater core made from high-grade alumina enabling superior thermal endurance and mechanical integrity. The customizable flange options – including ceramic, stainless steel, and copper – enhance adaptability to varied appliance designs and mounting configurations. This modular approach supports system engineers aiming to streamline component interchangeability and reduce downtime. The compact dimensions and precision manufacturing ensure tight tolerance fits within enclosures requiring hot surface ignitor integration for gas oven igniters and other specialized heater assemblies. Integrated quality controls under ISO9001 and SGS frameworks underscore the design’s reliability and traceability.

Operational Performance and User Efficiency
Performance-wise, this ignitor replacement achieves rapid startup times (40–60 seconds) with stable electrical characteristics, supporting efficient ignition cycles critical in commercial HVAC and cooking equipment. Its high thermal resistance guarantees longevity even under frequent on/off cycles, reducing maintenance interventions for technical staff. The rugged construction simplifies installation and replacement, providing easy integration with existing systems and minimizing operational disruptions. End users and maintenance engineers benefit from a consistent ignition source that aligns with evolving safety and performance standards, facilitating uninterrupted heating functionality in demanding environments.

Name	Ceramic Igniter
Model	HF1306 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	260W 300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1306A01-W	230	300	11.5	114	79	70	16.8
HF1306B01-W	230	300	11.5	114	79	70	16.8
HF1306A01-B	230	300	11.5	114	79	70	16.8
HF1306B01-B	230	300	11.5	114	79	70	16.8
HF1306A02-W	120	260	11.5	114	79	70	16.8
HF1306B02-W	120	260	11.5	114	79	70	16.8
HF1306A02-B	120	260	11.5	114	79	70	16.8
HF1306B02-B	120	260	11.5	114	79	70	16.8

Use Scenarios

Biomass and Pellet Burner Ignition Systems
In biomass boiler and pellet burner applications, the HF1306 Series Ceramic Igniter serves as a critical component to initiate combustion efficiently and reliably. The ignitor functions within operational environments characterized by fluctuating fuel moisture and particulate loads, demanding robust thermal cycling endurance. Its ceramic heater element design ensures sustained heat generation for ignition despite variable operating conditions, reinforcing compliance with emission and efficiency regulations. Integration into burner control systems offers consistent ignition performance, reducing startup failures and enhancing overall energy throughput. This reliability supports sustainable heating solutions in both residential and commercial biomass technology markets.

Commercial Gas Oven and Stove Ignition
Within commercial kitchen and HVAC equipment, the HF1306 hot surface ignitor acts as a dependable gas oven igniter that activates gas flow and initiates flame reliably under high-use conditions. The ignitor replacement’s rapid response and durability address operational priorities for foodservice operations requiring minimal downtime and safety compliance. Custom flange configurations enable installation across diverse stove models while maintaining electrical compatibility with control modules. The igniter’s uniform thermal output supports consistent ignition sequences vital for temperature regulation and energy efficiency in multi-unit cooking environments. This ensures value through reduced operational costs and regulatory compliance adherence.

FAQ

What voltage and power options are available for the HF1306 Series Ceramic Igniter?
We offer the HF1306 Series Ceramic Igniter in 120V or 230V versions, with power ratings of 260W or 300W to fit diverse heating applications. These options ensure compatibility with your system's electrical requirements for reliable ignition performance.

Can I order a custom flange design for the HF1306 Series Ceramic Igniter?
Yes, we provide customizable flange materials and sizes, including ceramic, stainless steel, copper, or tailored designs. This flexibility helps integrate the igniter seamlessly into your specific equipment, whether for boilers, pellet burners, or grills.

How do you ensure the quality and safety compliance of your ceramic heater elements?
Our products undergo strict quality control under ISO9001, SGS, BSCI, TUV, and other certifications. We continuously monitor material composition and manufacturing processes to guarantee consistent performance and compliance for our ceramic heater elements.

Is the HF1306 Series suitable as an oven igniter replacement, and what is its typical ignition time?
Our HF1306 Series Ceramic Igniter serves well as a gas oven igniter or ignitor replacement, providing a reliable ignition time between 40-60 seconds. This quick startup enhances the efficiency and safety of your oven or heating appliance.
