HF1305 Series Ceramic Igniter

Name: HF1305 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1305 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1305 Series

The HF1305 Series ceramic igniter delivers precision ignition for industrial heating with robust ceramic heater elements and a reliable hot surface ignitor design, suitable for oven igniter and gas oven igniter applications.

Ask for a Solution PDF Format

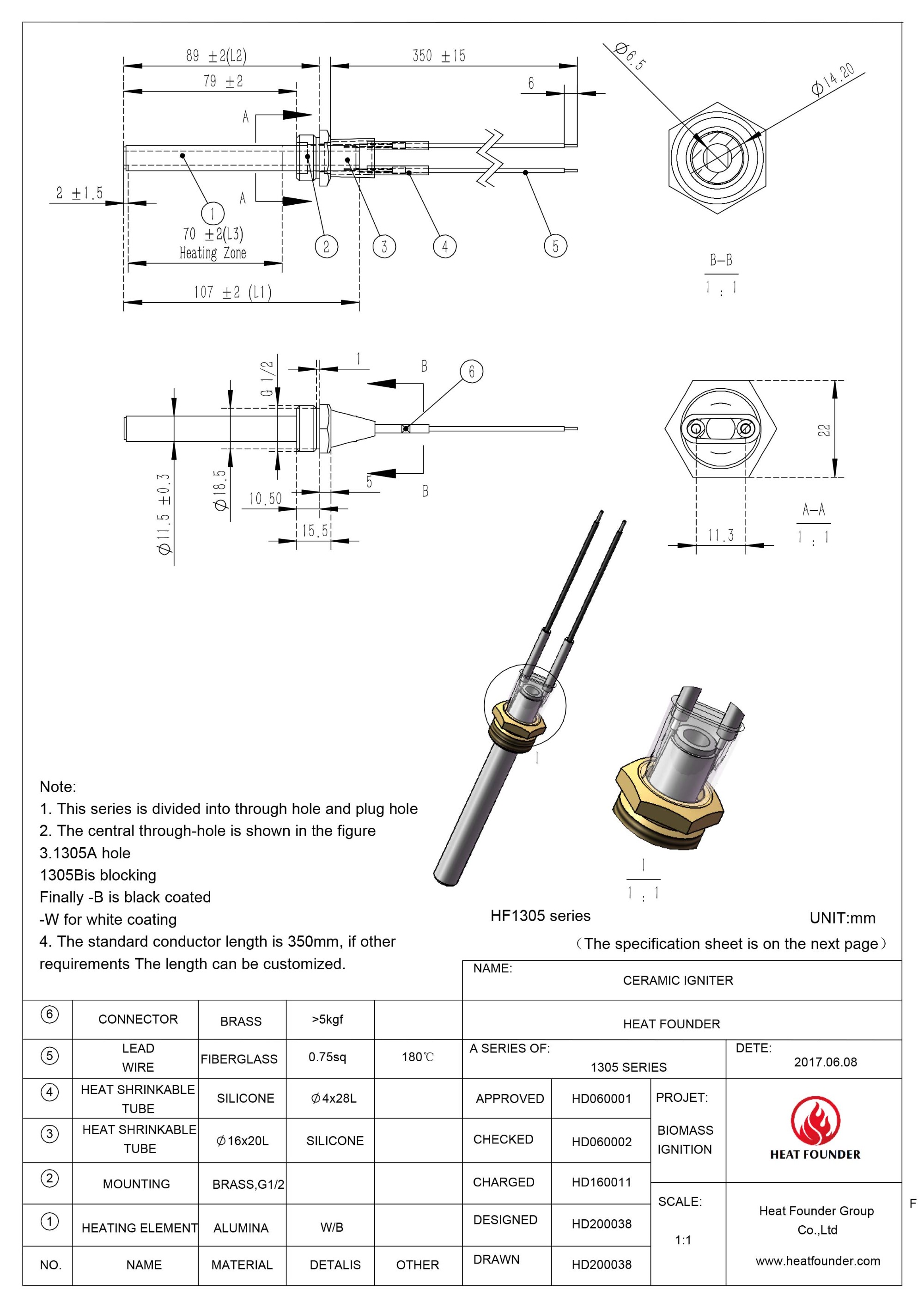

Description DRAWING

Targeted Applications and User Profile
The HF1305 Series ceramic igniter is engineered for heating system manufacturers and industrial equipment integrators requiring consistent ignition solutions. Designed to serve as a core component in pellet burners, biomass boilers, and gas-fired appliances, this unit meets rigorous demands for reliability in continuous operation environments. Users such as OEM engineers and procurement specialists will find this model particularly useful as a robust alternative to conventional ignitor replacements. Its adaptability supports various system configurations, providing a crucial ignition source tailored to a range of commercial gas oven igniter and oven igniter installations.

Advanced Technical Composition and Functional Metrics
This ignitor features 96% alumina ceramic heater elements that ensure high thermal resistance and mechanical toughness. Operable within a temperature spectrum from ambient levels to 1050 °C, the HF1305 Series supports power inputs of 260W to 300W at standard 120V or 230V voltages. Key performance indicators include a rapid ignition interval of 40 to 60 seconds, with flange options constructed from ceramic, stainless steel, or copper to facilitate integration flexibility. Quality assurances via SGS, ISO9001, and Intertek certifications attest to its manufacturing consistency and compliance, making it an optimal hot surface ignitor component for technical applications demanding precise heating control.

Industry Deployment and Operational Value
Widely compatible across industrial heating scenarios, this ceramic heater component elevates operational efficiency within pellet stove production, gas oven igniter systems, and specialized heating devices like agricultural particle burning units. It fulfills essential ignition roles in systems where ignition reliability directly affects process continuity and safety, such as fuel cell heating and oil or gas-fired boilers. The HF1305 Series ignitor replacement offers system designers and maintenance engineers a dependable solution, minimizing downtime and maintenance frequency, thereby enhancing overall asset utilization in competitive industrial markets.

Product Advantages

Design and Integration Efficiency
Structurally, the HF1305 Series incorporates a modular design facilitating seamless integration into diverse heating assemblies. Its ceramic heater elements, combined with customizable flange materials, offer system engineers extensive adaptability for varied installation environments. The compact and durable construction enables straightforward mounting in confined spaces of pellet burners or gas oven igniter assemblies without compromising thermal performance. This configuration supports improved lifetime and resilience against mechanical stresses and high-temperature cycles, aligning with advanced industrial standards for hot surface ignitor longevity and robustness.

Operational Performance and User Impact
In performance terms, the HF1305 Series hot surface ignitor provides consistent ignition timing and thermal output, reducing energy waste and ensuring quicker heat stabilization. The ignitor’s reliable temperature tolerance minimizes risk of premature failure, while the carefully controlled power rating supports efficient energy consumption in high-demand systems. These factors deliver tangible user benefits, including decreased maintenance intervals and improved system uptime. For maintenance engineers and system operators, this ignitor replacement promotes simplified troubleshooting and compatibility with existing control modules, ultimately supporting an enhanced return on investment through durability and operational efficiency.

Name	Ceramic Igniter
Model	HF1305 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	260W 300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1305A01-W	230	300	11.5	107	79	70	G1/2
HF1305B01-W	230	300	11.5	107	79	70	G1/2
HF1305A01-B	230	300	11.5	107	79	70	G1/2
HF1305B01-B	230	300	11.5	107	79	70	G1/2
HF1305A02-W	120	260	11.5	107	79	70	G1/2
HF1305B02-W	120	260	11.5	107	79	70	G1/2
HF1305A02-B	120	260	11.5	107	79	70	G1/2
HF1305B02-B	120	260	11.5	107	79	70	G1/2

Use Scenarios

Pellet Burner Ignition Systems in Residential and Commercial Heating
In the residential and commercial heating industry, the HF1305 Series functions as a critical gas oven igniter element within pellet burner systems. Here, the ignitor initiates combustion by rapidly reaching operational temperatures via its ceramic heater elements, enabling reliable ignition of fuel pellets under variable operating conditions. Compliance with multiple international quality certifications ensures the device meets industry safety and performance mandates. Its role integrates tightly within automated burner control systems, providing predictable ignition cycles critical for maintaining thermal output consistency and fuel efficiency during seasonal heating demands.

Industrial Biomass Boiler Startup and Combustion Control
Within industrial biomass boiler operations, rapid and dependable ignition directly influences system safety and efficiency. The HF1305 Series ceramic igniter serves as a primary hot surface ignitor, enabling biomass burners to reach ignition temperatures swiftly and repeatedly over long duty cycles. The component’s high thermal endurance and robust construction comply with stringent operational standards necessary in industrial environments. Its ease of installation and compatibility with flange configurations aides engineers in retrofitting or upgrading existing burner technology, facilitating smoother startup sequences and stabilization of combustion processes in complex heating infrastructures.

FAQ

What industries commonly use the HF1305 Series Ceramic Igniter?
We supply the HF1305 Series Ceramic Igniter to sectors including pellet burners, biomass boilers, gas burners, and pellet stoves. Its compatibility with diverse heating applications makes it ideal for industrial and commercial users needing a robust ceramic heater element.

Can you customize the HF1305 Series igniter to fit specific power or voltage requirements?
Yes, we offer flexibility with power ratings of 260W or 300W and voltage options of 120V or 230V. Our team works closely with you to tailor specifications for your industrial setup, ensuring optimal performance of your hot surface ignitor system.

How do you ensure the quality and reliability of your ceramic igniters?
Our HF1305 Series igniters undergo strict quality control under SGS, ISO9001, BSCI, TUV, and other certifications. We carefully select materials like 96% alumina ceramic and stainless steel, guaranteeing durability and consistent performance for long-term industrial use.

What is the typical delivery timeline for bulk orders of the HF1305 Series igniter?
We aim to deliver samples within approximately 5 working days, while mass production typically takes around 12 working days. This ensures prompt supply of the gas oven igniter components you need to maintain your production schedule.
