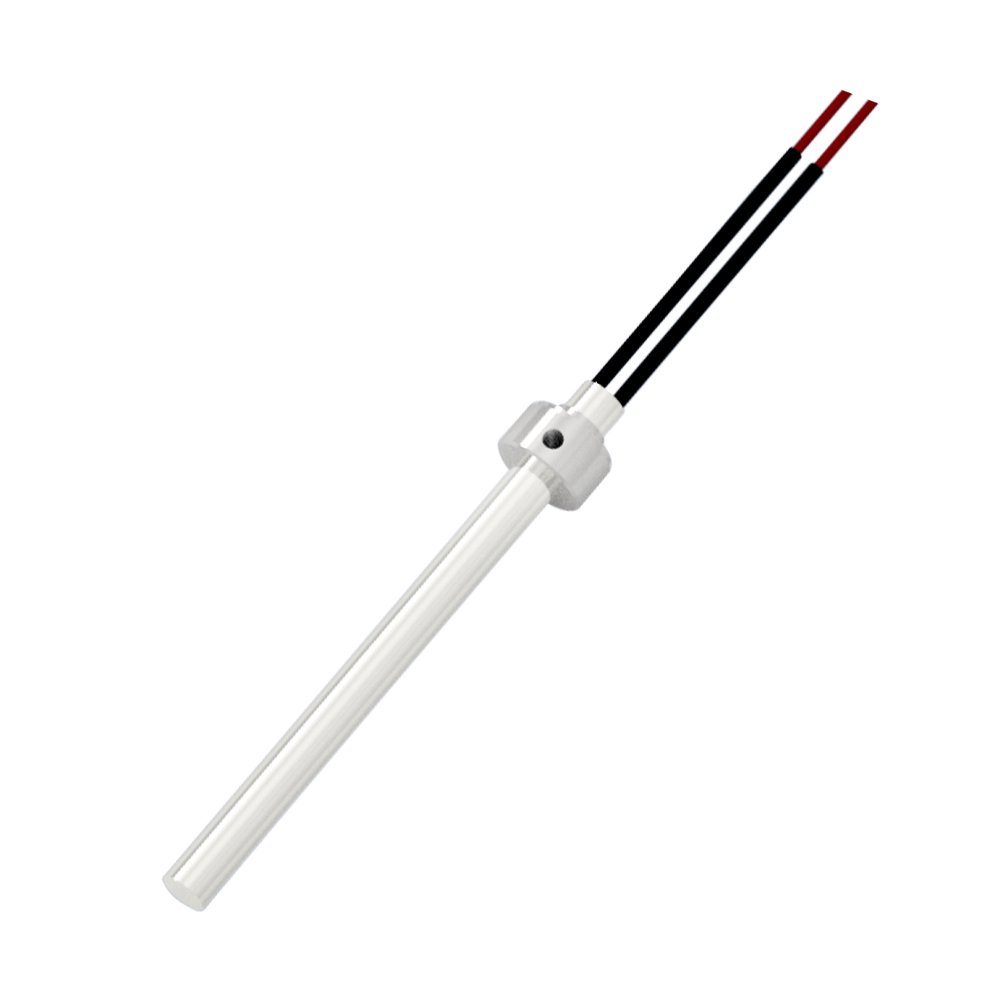

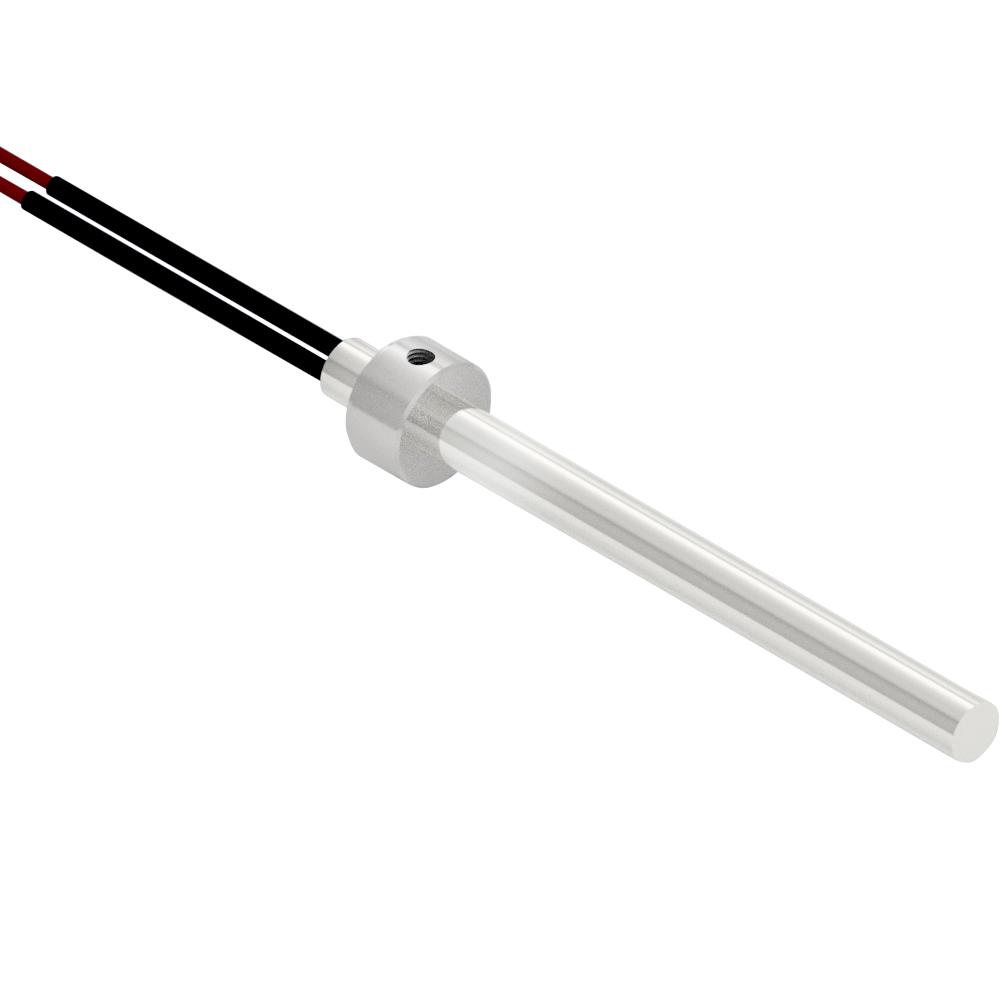

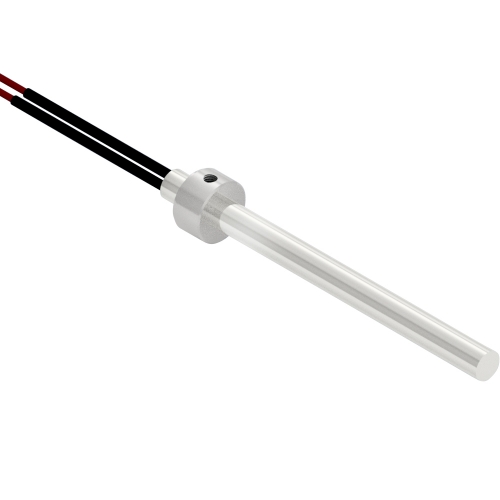

HF1109 Series Stainless Steel Igniter

Item No.: HF1109 Series

The HF1109 Series Stainless Steel Igniter delivers durable, precise ignition performance for advanced heating systems. Designed for compatibility with ceramic heater elements and hot water heater igniters, it ensures reliable operation.

Ask for a Solution PDF Format

Description DRAWING

Robust Ignition Component for Industrial Heating Applications
The HF1109 Series Stainless Steel Igniter is engineered for professional heating system integrators requiring consistent hot surface ignition reliability. Targeting biomass boilers, pellet burners, and gas stoves, this component integrates effectively with ceramic heater elements and hot water heater igniters to provide a dependable ignition interface. It supports diverse installation scenarios across residential and industrial systems, enabling streamlined maintenance and enhancing overall system uptime. Its design suits technicians and procurement professionals focusing on system durability and operational stability.

Advanced Specifications Ensure High Performance and Versatility
Constructed from Incoloy 800 stainless steel, the HF1109 operates between 600 to 800 °C (1112 to 1472 °F), offering ignition times from 100 to 180 seconds. Available in 350W and 450W power ratings at 120V or 230V, it provides flexible electrical compatibility with various heating units. Flange options include ceramic, stainless steel, copper, or customized materials, accommodating specific thermal and mechanical requirements. These detailed specifications make this igniter a suitable choice for precision engineering projects necessitating quality and compliance with stringent international certifications such as SGS and ISO standards.

Critical Role in Industrial and Residential Heating Systems
The HF1109 Series facilitates ignition in gas stoves, pellet stoves, and biomass burners, guaranteeing reliable start-up sequences essential for safety and efficiency. It further extends to industrial agricultural heating systems and residential hot water heater element applications where ignition consistency is paramount. By integrating with ceramic heater elements and water heater element replacements, it enables systems to meet rigorous operational demands and regulatory requirements. This component thus contributes significantly to system longevity and energy-efficient heating processes across multiple sectors.

Product Advantages

Design and Material Integration Enhance System Reliability
The HF1109 Series features a robust construction using Incoloy 800, combining corrosion resistance with high-temperature endurance. Its flange adaptability—whether ceramic, stainless steel, copper, or custom—permits optimized interfacing with various hot water heater igniter systems and ceramic heater elements. This modular design facilitates seamless integration within existing heater architectures, minimizing modification needs. The diversity of voltage and power configurations further supports diverse industrial installations, reinforcing adaptability and simplifying inventory management for system engineers requiring reliable water heater element replacements.

Optimized Ignition Efficiency and Compliance for Operational Accuracy
Operating within a precise temperature range and delivering consistent ignition time, this igniter guarantees controlled, reliable start-up performance, critical in minimizing downtime and maintenance costs. The product’s compliance with multiple international certifications underscores its quality and safety credentials, which are paramount for engineering procurement and quality assurance teams. Its compatibility with hot water heater element arrays and ceramic heater variants translates to sustained reliability in demanding environments, enhancing user confidence while complying with operational standards governing heating system components.

Name	Stainless Steel Igniter
Model	HF1109 Series
Material	Incoloy 800
H.S. Code	8516800000
Voltage	120V 230V
Power	300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	600~800 °C/1112~1472℉
Ignition Time	100-180 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Max.OD.flange(MM)
HF1109001	120	300	9.3	125	105	19.2
HF1109002	230	300	9.3	125	105	19.2

Use Scenarios

Ignition Component in Biomass Boiler and Pellet Burner Systems
In biomass heating facilities, the HF1109 Series igniter acts as a fundamental component to initiate fuel combustion reliably. Operating within high-temperature environments, it interfaces directly with ceramic heater elements, contributing to efficient ignition cycles essential for renewable energy applications. The product’s material robustness ensures performance stability under fluctuating thermal stresses, while compliance with environmental and safety standards supports operational certifications for biomass plants. This reliable ignition allows operators to maintain continuous fuel combustion, reducing operational interruptions and extending the lifecycle of hot water heater igniters integrated into advanced boiler infrastructures.

Integration with Residential Gas Stoves and Pellet Heating Appliances
For residential systems, the HF1109 Series igniter supports safe and efficient ignition of gas stoves and pellet heating units commonly used for domestic hot water and space heating. Its compact dimensions and customizable flange materials enable straightforward replacement during water heater element replacement cycles, facilitating maintenance and retrofit projects. By assuring consistent ignition timing and durability, it upholds safety protocols and reduces the risk of system failures. Integration with ceramic heater elements optimizes heat transfer and ignition reliability, meeting the strict performance requirements typical in residential heating standards and enhancing end-user operational stability.

FAQ

What materials are used in the HF1109 Series Stainless Steel Igniter?
Our HF1109 igniter is constructed mainly from durable Incoloy 800 stainless steel, with flange options in ceramic, stainless steel, copper, or customized materials. This ensures reliable performance in high-temperature environments typical for hot water heater igniters and industrial heating systems.

Can you customize the igniter to fit specific heating system requirements?
Yes, we offer customization for flange materials and model sizes to match your equipment needs. Our team works closely with you to deliver the right specifications for your water heater element replacement or other industrial heating applications.

What are the power and voltage options available for this igniter?
The HF1109 Series is available in power ratings of 300W, compatible with 120V or 230V electrical systems. These options enable flexible integration into various heaters, including biomass boilers and ceramic heater elements in gas stoves.

How long is the typical delivery time for orders and samples?
We provide samples within 5 working days and mass production orders are usually completed within 12 working days. This timely delivery supports your project schedules, whether you need a replacement water heater element or new ignition solutions for your production line.
