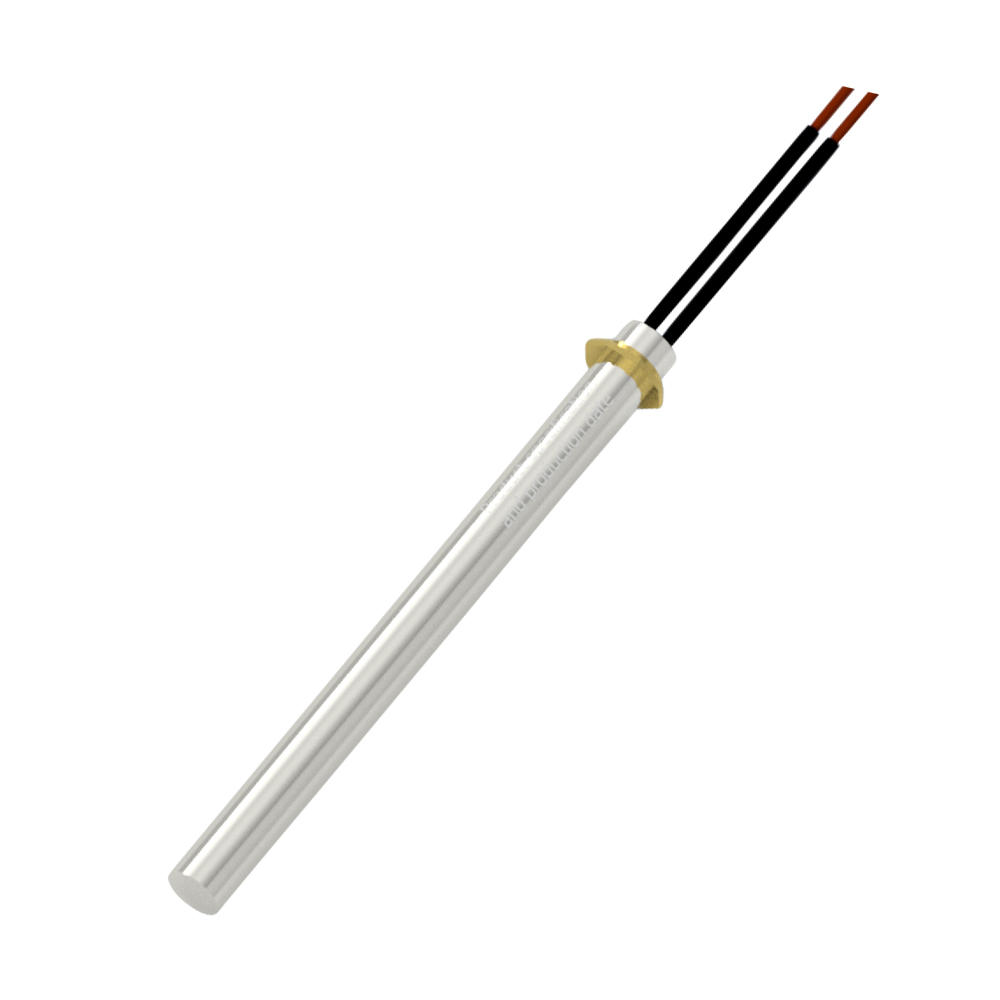

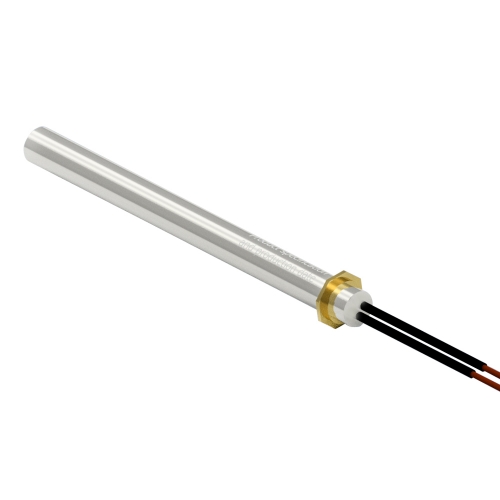

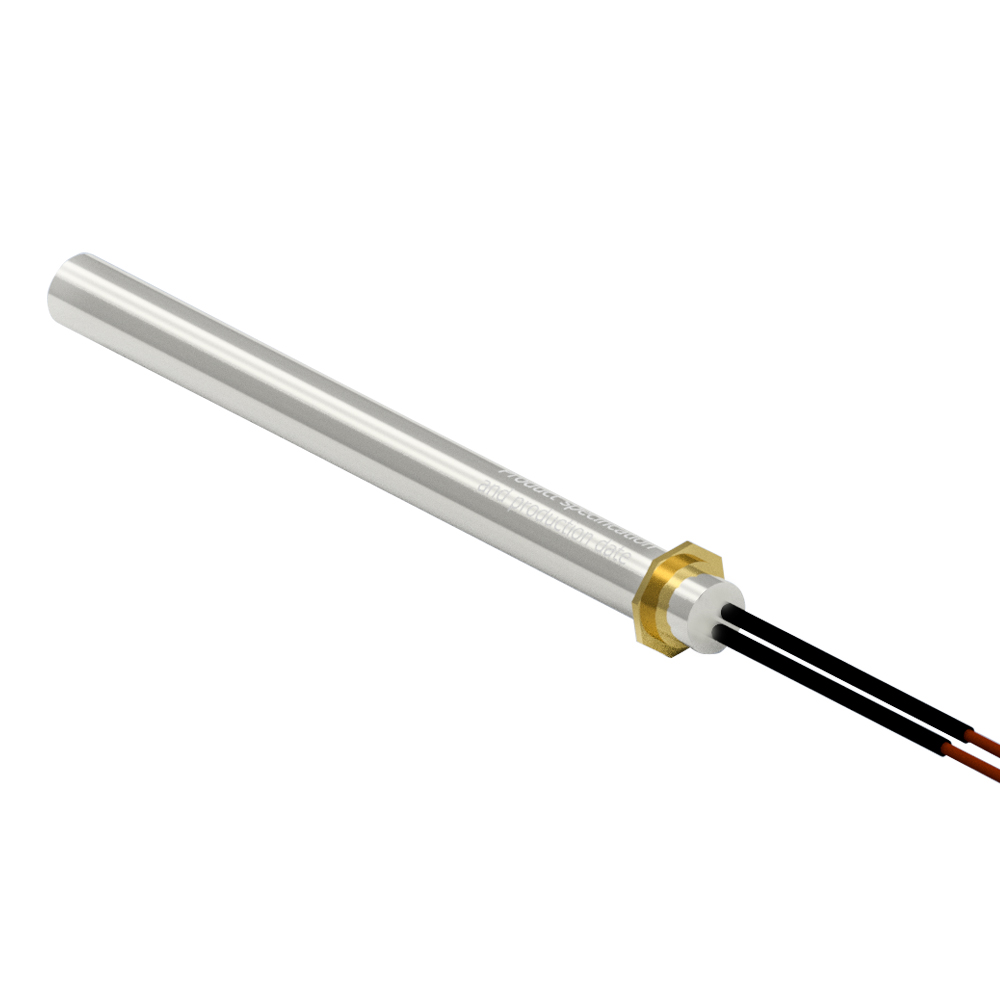

HF1103 Series Stainless Steel Igniter

Name: HF1103 Series Stainless Steel Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1103 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1103 Series

The HF1103 Series stainless steel igniter delivers durable ignition for industrial heating with high thermal stability. Ideal as a hot water heater igniter or ceramic heater element replacement in critical systems.

Ask for a Solution PDF Format

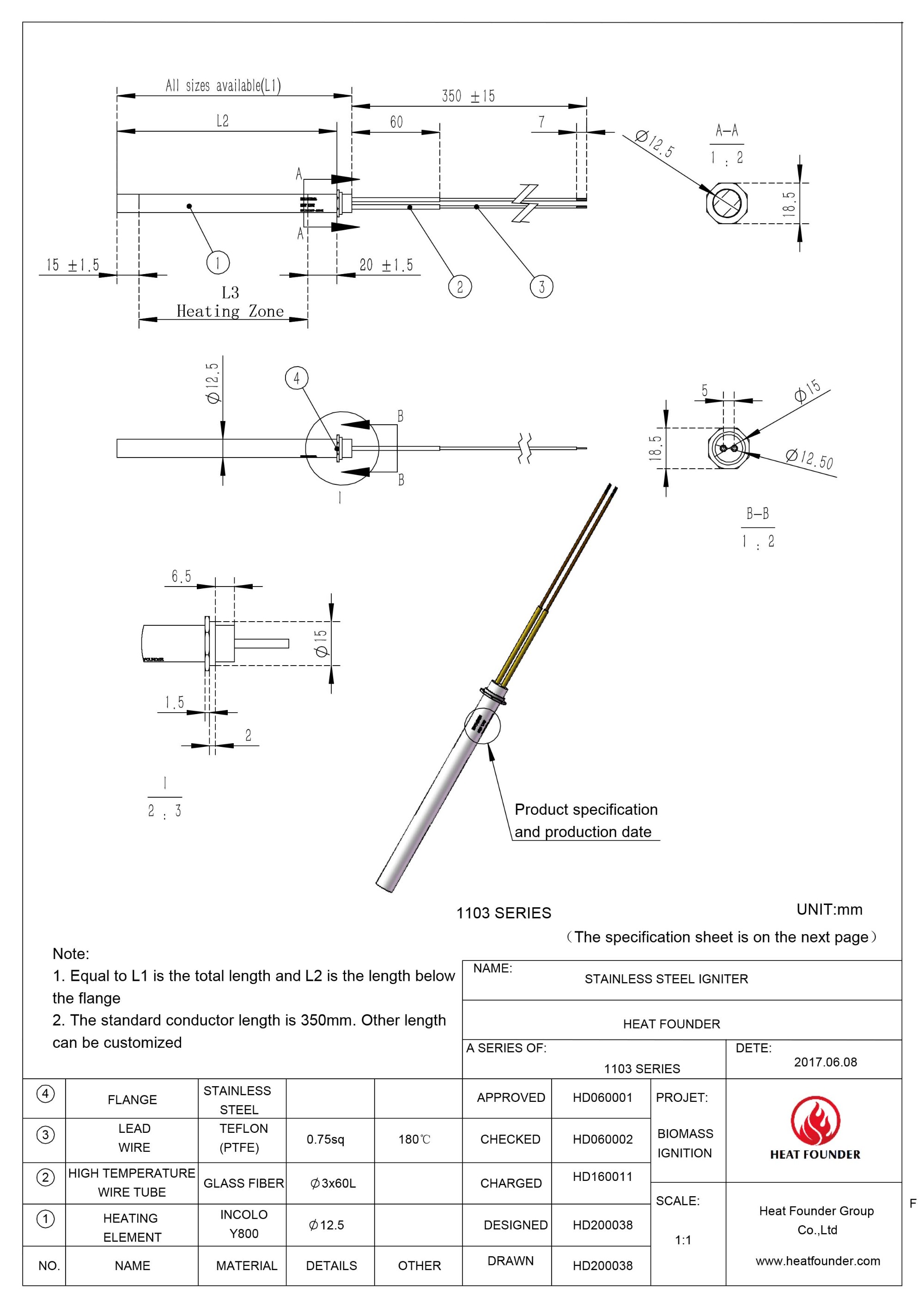

Description DRAWING

Functional Role and Target User Segments
The HF1103 Series stainless steel igniter serves as a reliable ignition component tailored for heating system manufacturers, OEMs, and industrial equipment integrators. It complements applications that demand precise ignition performance, such as hot water heater igniters or ceramic heater elements within complex thermal management setups. Entities involved in biomass boilers, pellet burners, and gas stove burners benefit from incorporating this element, as it ensures consistent start-up sequences. This product addresses the critical requirement for dependable ignition phases in hot water heater element assemblies or replacement scenarios, facilitating streamlined operational workflows where heating initiation integrity is paramount.

Technical Composition and Performance Metrics
Constructed from Incoloy 800 stainless steel, the HF1103 igniter combines robustness with superior thermal endurance. Voltage operation is standardized at 230V, supporting power ratings of 270W and 350W to suit diverse energy needs. The igniter attains operating temperatures from 600 to 800 °C (1112 to 1472 °F), enabling rapid ignition cycles within 100 to 180 seconds. Flange configurations include flame-resistant ceramic, stainless steel, copper, or custom options, optimizing compatibility with a broad range of industrial assembly requirements. Compliance with SGS, ISO9001, and Intertek quality control protocols assures end-users of consistent manufacturing standards appropriate for hot water heater element replacement and ceramic heater applications.

Industrial Applications and Operational Integration
Designed for multi-sector deployment, the HF1103 igniter integrates seamlessly into systems such as pellet stoves, gas burners, biomass boilers, and pellet BBQ grills, where reliable ignition is essential. Its role extends to high-value settings requiring controlled heating initiation, including medical-scientific instrumentation and agricultural particle burners. By providing a consistent hot water heater igniter function or acting as a ceramic heater element alternative, this series supports system longevity and operational safety. Integration capabilities with glow plugs, fuel cells, and vehicle heating systems further underscore its versatility, reinforcing its position within critical heating and ignition architectures.

Product Advantages

Structural Design and System Compatibility
The HF1103 Series features a modular design facilitating straightforward integration into existing heating systems requiring water heater element replacement or ceramic heater elements. Its stainless steel construction, coupled with optional ceramic or copper flanges, provides flexibility for different mechanical and chemical environments. This design adheres to rigorous certifications including BSCI and TUV, reinforcing system reliability and meeting diverse regulatory standards. The option for customized flange designs enhances adaptability for specific OEM or end-user configurations, enabling tailored solutions that maintain compatibility with multiple hot water heater element platforms and ceramic heater installation protocols.

Performance Reliability and Operational Efficiency
Performance-wise, the HF1103 igniter combines rapid ignition times with high thermal stability, promoting efficient energy use and operational continuity in heating processes. Its quick heating response directly reduces downtime within critical systems needing hot water heater igniter replacements, enhancing system throughput. Additionally, the product’s resistance to harsh operating conditions extends service life, diminishing maintenance frequency and associated costs. From a user perspective, its proven compliance with industry standards and compatibility with various hot water heater elements or ceramic heater configurations ensures dependable functionality and ease of maintenance in diverse industrial environments.

Name	Stainless Steel Igniter
Model	HF1103 Series
Material	Incoloy 800
H.S. Code	8516800000
Voltage	230V
Power	270W 350W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	600~800 °C/1112~1472℉
Ignition Time	100-180 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1103001	230	270	12.5	160	150	115	18.5
HF1103002	230	350	12.5	170	160	125	18.5
HF1103003	230	350	12.5	175	165	130	18.5
HF1103004	230	350	12.5	160	155	120	18.5
HF1103005-1	230	350	12.5	165	150	115	18.5

Use Scenarios

Ignition Solutions in Biomass and Pellet Burner Systems
In biomass boilers and pellet burners, consistent and rapid ignition is crucial for operational efficiency and emissions control. The HF1103 igniter performs the essential function of initiating combustion with controlled heating at temperatures reaching up to 800 °C. Its compatibility as a ceramic heater element or hot water heater igniter replacement facilitates integration into existing burner setups. The product’s robust design withstands particulate-laden environments, ensuring sustained ignition cycles aligned with environmental compliance standards. By embedding this igniter, operators can achieve reliable startup sequences and system stability within their biomass combustion workflows.

Gas Burner Ignition in Residential and Commercial Heating Appliances
Within residential and commercial stove applications, the HF1103 igniter acts as a critical component for igniting gas burners efficiently and safely. This element supports hot water heater element replacement needs where thermal consistency and ignition speed are paramount. Featuring flame-resistant flanges and certification compliances, it reduces potential safety risks associated with ignition failure. The igniter’s design supports integration with electronic controls and thermal feedback systems, optimizing heating regulation. This ensures enhanced energy management and compliance with industry safety codes in commercial and household heating infrastructures.

FAQ

What materials are used in the HF1103 Series Stainless Steel Igniter?
We manufacture the HF1103 igniters using high-grade Incoloy 800 stainless steel combined with various flange options such as ceramic, stainless steel, copper, or customized materials. This ensures durability and thermal stability suitable for demanding heating and ignition applications.

Can you customize the igniter to fit specific equipment requirements?
Yes, we provide flange customization for the HF1103 Series to meet your exact needs. Whether you require ceramic, copper, stainless steel, or other flange materials, we offer flexible options to ensure optimal fitting and reliable performance in your systems.

What is the recommended lead time for sample and bulk orders?
We typically process sample orders within 5 working days, allowing you to evaluate the product promptly. For bulk production, the lead time is approximately 12 working days. We maintain strict quality control to ensure consistent reliability across all orders.

How do I maintain and install the HF1103 water heater igniter correctly?
For optimal operation of the HF1103 Series water heater element, ensure installation follows manufacturer guidelines using proper flange alignment. Routine inspections help maintain performance and longevity. If you need detailed support, our technical team is available to assist with installation and maintenance advice.
