Silicon nitride (Si3N4) heating elements are advanced materials used in high-temperature applications due to their excellent thermal stability,

high strength, and resistance to oxidation.

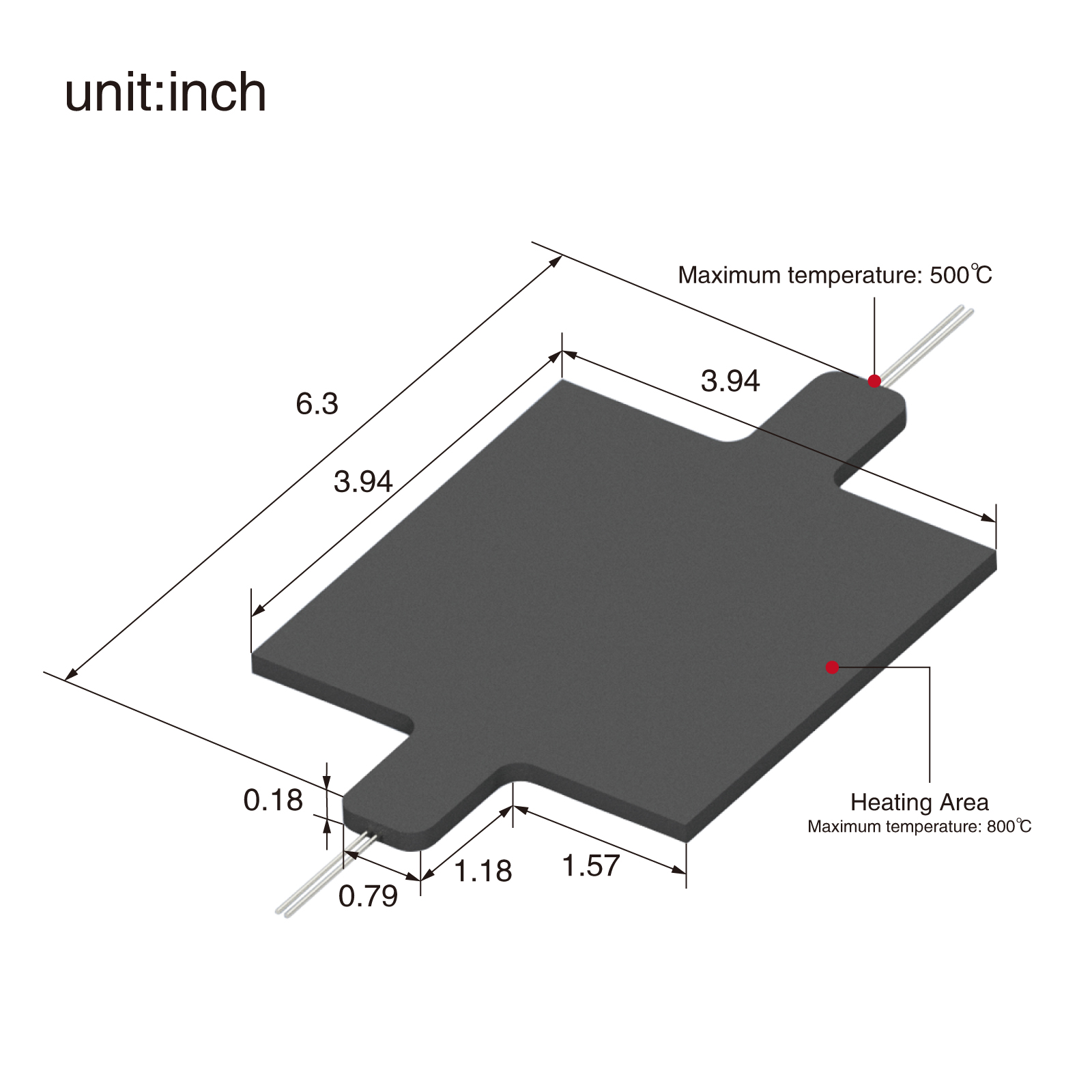

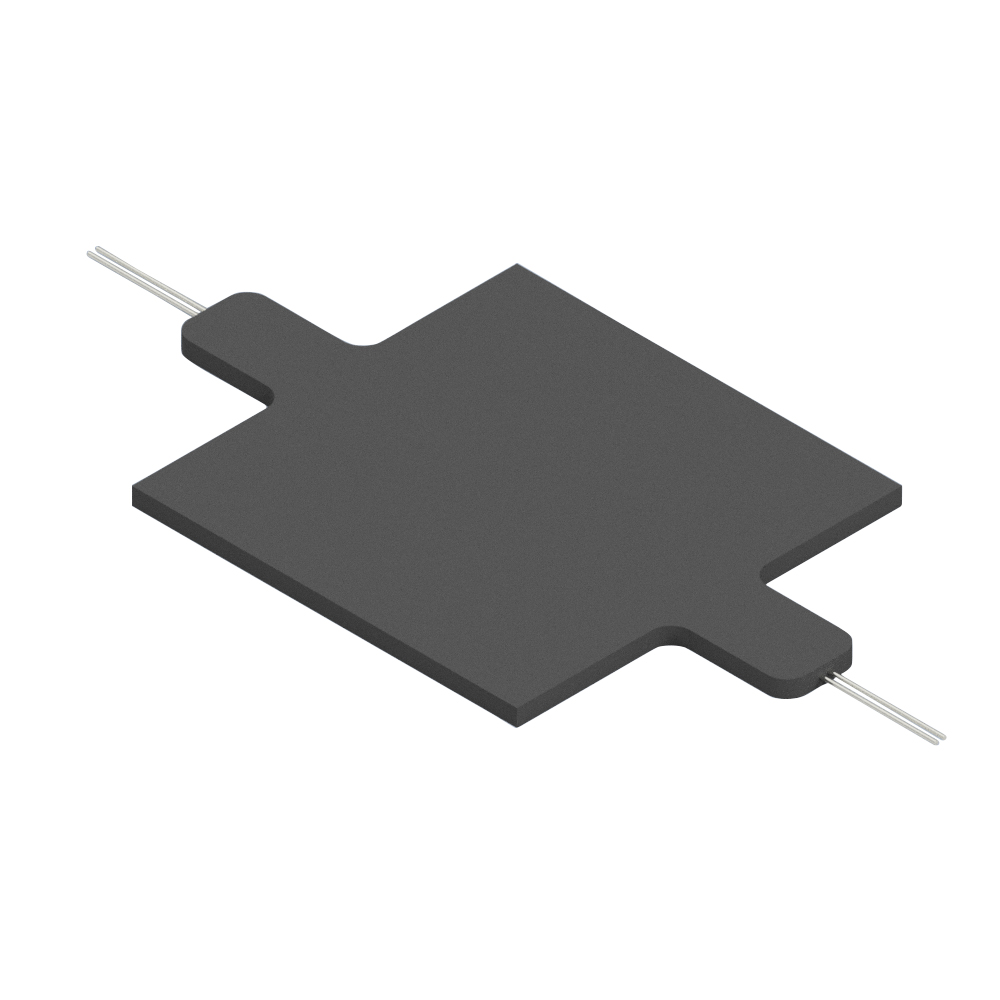

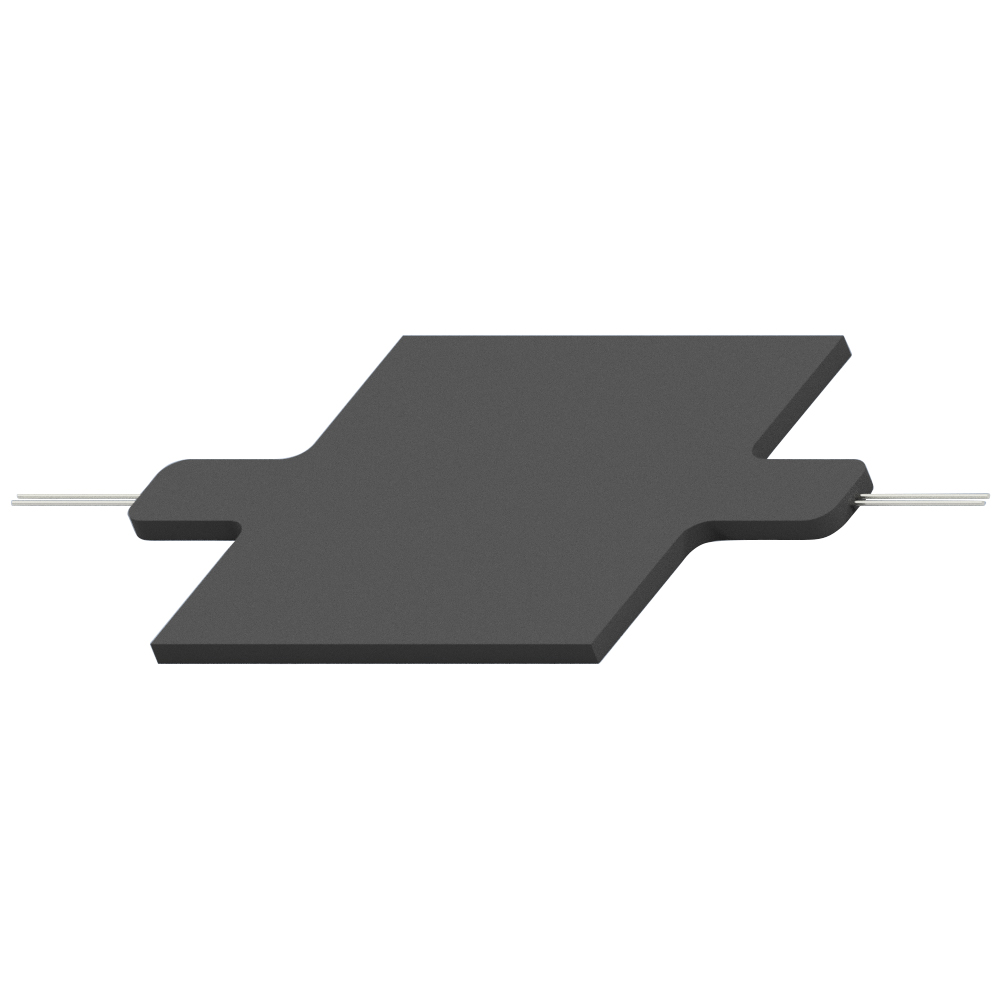

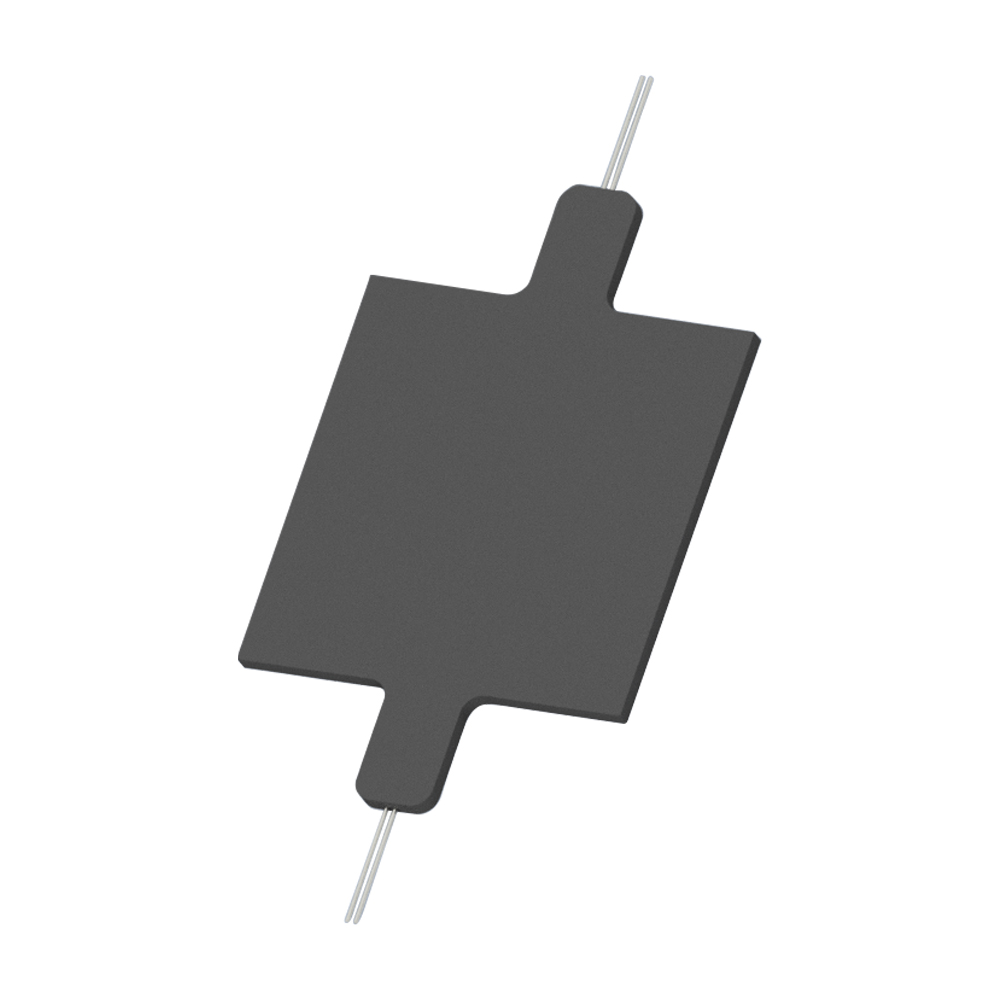

Ceramic hot plates made of silicon nitride can be produced with an outer diameter of 400 mm. Within this diameter any rectangular shape, customized shape or opening is possible. A typical height of the plates is 5 mm. The special properties and low mass of the ceramic material allow fast heating rates, uniform temperature distribution and outstanding precision in control. In comparison to metal the surface of ceramic material stays flat due to its low thermal expansion even when operated with fast changes in temperature. The high strength of hot-pressed silicon nitride guarantees high stress resistance (e. g. with high pressure loads) and excellent wear resistance. We provide hot plates for operating in the open air at temperatures up to 500 °C. Temperatures up to 1 000 °C could be achieved by developing specific technical solutions. However with continuous operation at temperatures > 900 °C a limited service life of 2 500 operating hours is to be expected, whereas with operation under high vacuum even at 1 000 °C the wear and tear is very low.
Here are some key points about silicon nitride heating elements:

 Properties

1. High Thermal Stability: Silicon nitride can withstand high temperatures, making it suitable for applications where conventional materials may fail.
2. Chemical Resistance: It exhibits good resistance to various chemicals, including acids and bases, which is beneficial in harsh environments.
3. Low Thermal Expansion: This property helps maintain structural integrity under thermal cycling, reducing the risk of cracking.
4. Electrical Insulation: Silicon nitride is an electrical insulator, which allows it to be used in applications where electrical conductivity is undesirable.

 Applications

1. Industrial Furnaces: Used in high-temperature furnaces for processes like sintering, annealing, and metal processing.
2. Semiconductor Manufacturing: Employed in processes that require controlled heating environments, such as in the production of silicon wafers.
3. Ceramics and Glass Processing: Utilized in kilns and other equipment where high temperatures are necessary.
4. Aerospace and Automotive: Used in components that require heat resistance and durability.
5. Semiconductor Processing Systems (e. g. die bonders)
6. Coating Systems, Evaporators
7. Soldering Systems
8. Vacuum Technology
9. Packaging Machines
10. Plastic Technology
11. Medical Technology
12. Machine-Building
13. Presses
14. R&D - Laboratory Equipment, Measuring and Testing Equipment, Reactors
15. Tool Heating

 Advantages

1. Long Lifespan: Due to their durability and resistance to thermal shock, silicon nitride heating elements typically have a longer operational life compared to traditional heating elements.
2. Efficiency: They can provide uniform heating, which improves energy efficiency and reduces waste.
3. Reduced Maintenance: Their robustness leads to lower maintenance requirements, which can reduce operational costs over time.
4. You have superior temperature uniformity and flatness of the hotplate
5. High mechanical strength ensures long lifetime even when stressed by pressure and temperature cycling
6. The hotplates can be custom made and exactly adapted to your requirements
7. You can operate the heaters in air, high vacuum or inert gas up to 1000 °C

 Manufacturing

Silicon nitride heating elements are typically manufactured through processes such as sintering, where silicon nitride powder is compacted and heated to form a solid structure.
Advanced techniques may include additive manufacturing for complex geometries.

 Conclusion

Silicon nitride heating elements represent a significant advancement in heating technology, particularly for high-temperature and demanding applications.
Their unique properties make them a preferred choice in various industries, contributing to improved efficiency and reliability in heating processes.
