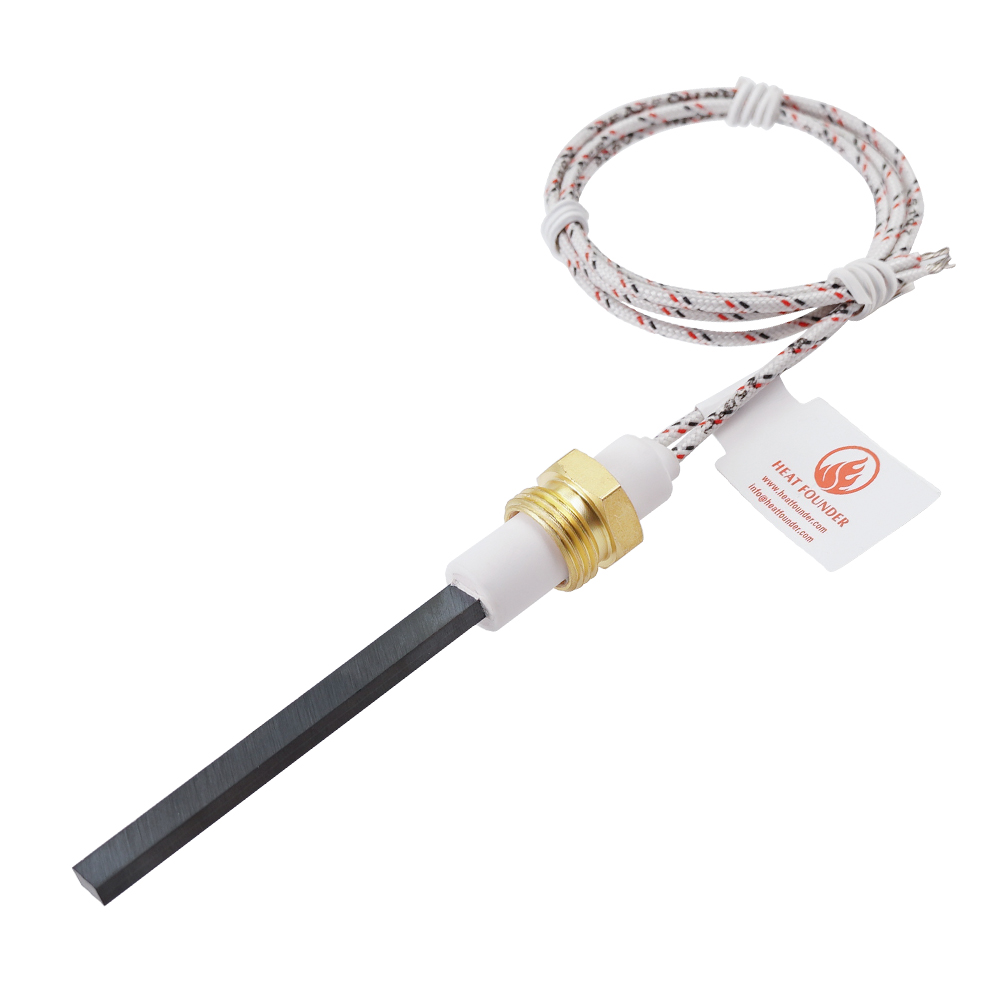

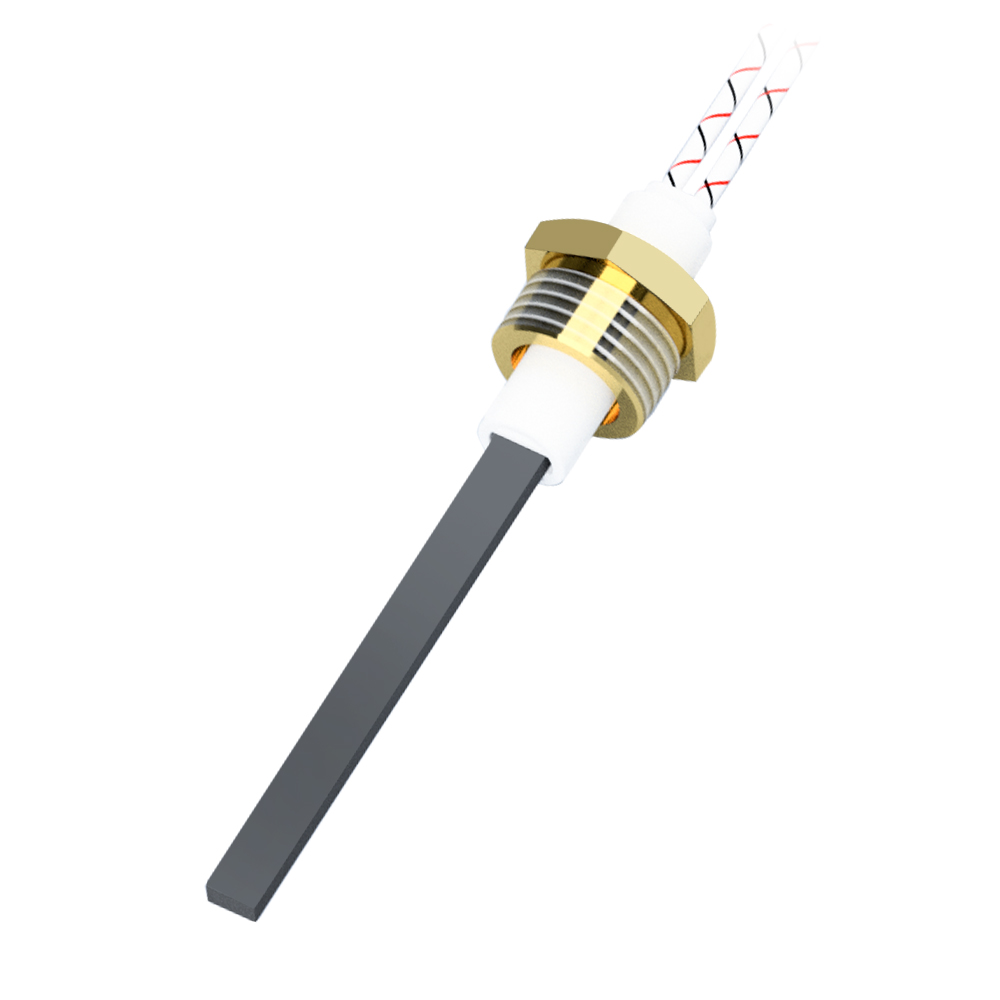

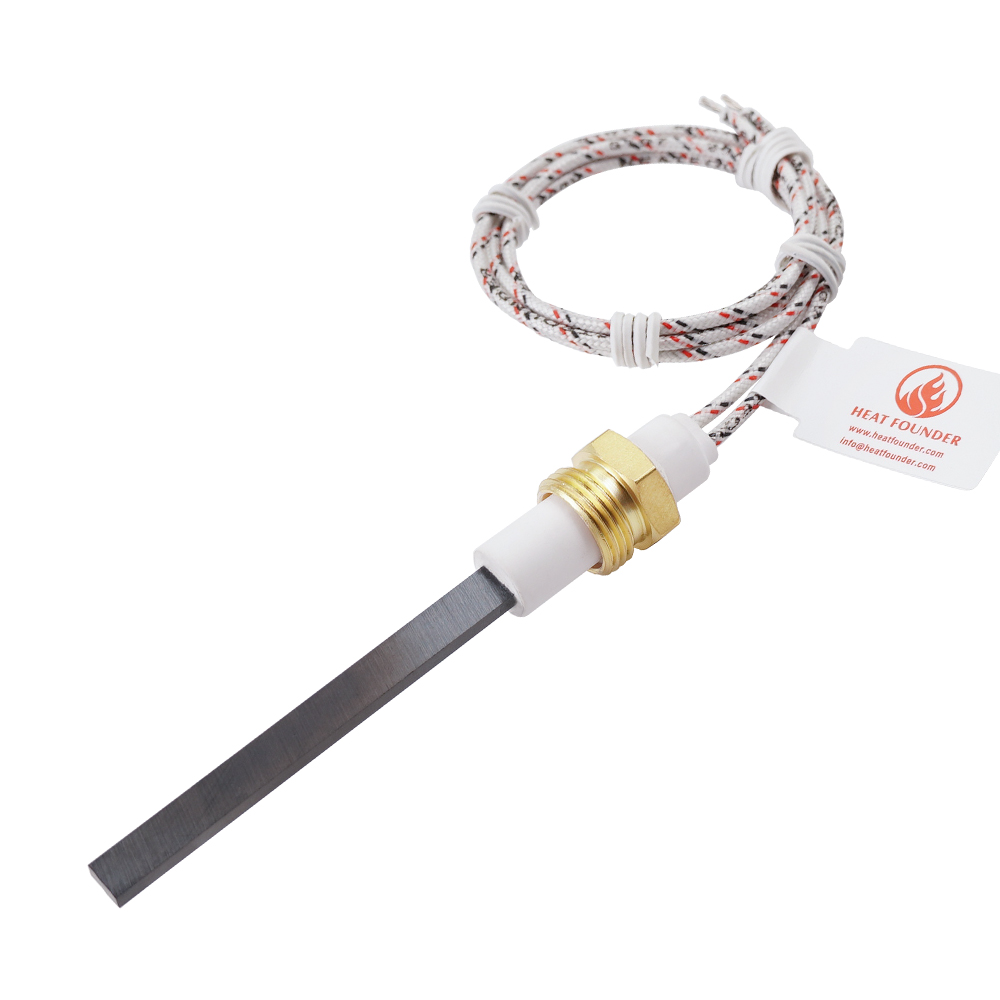

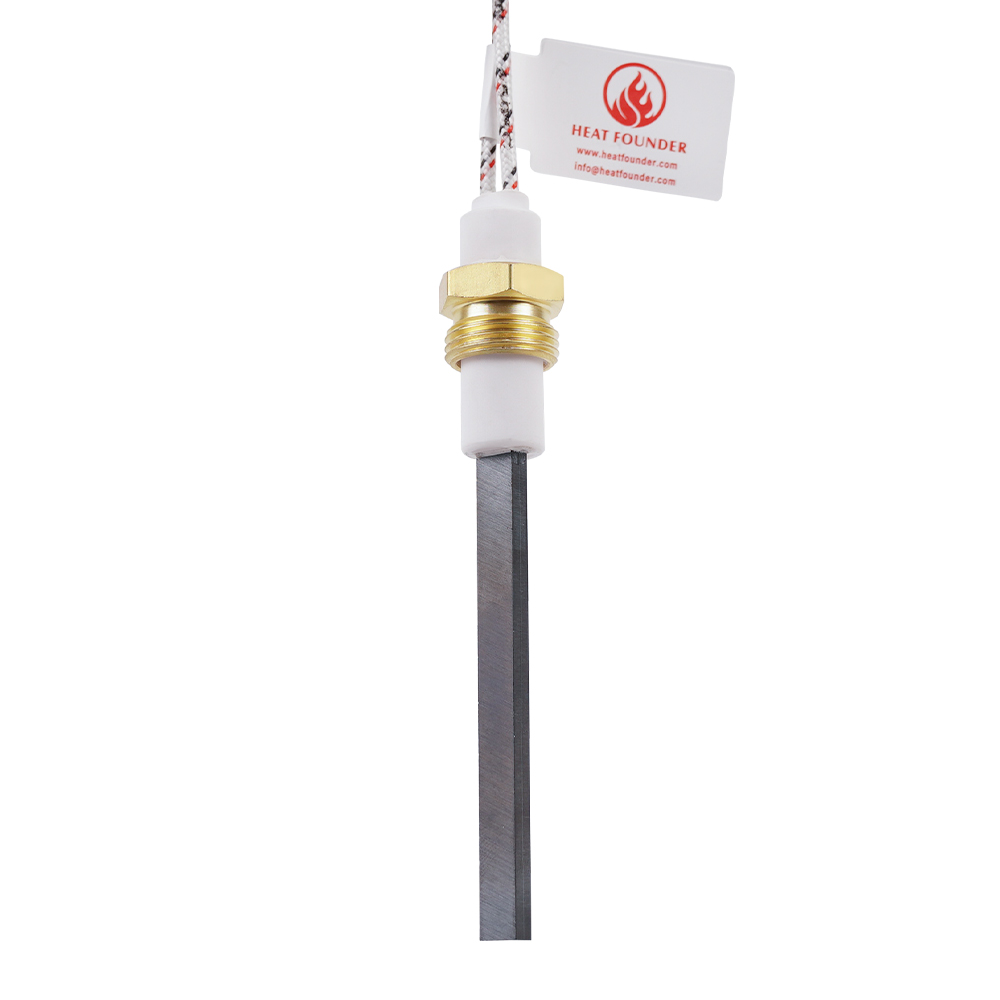

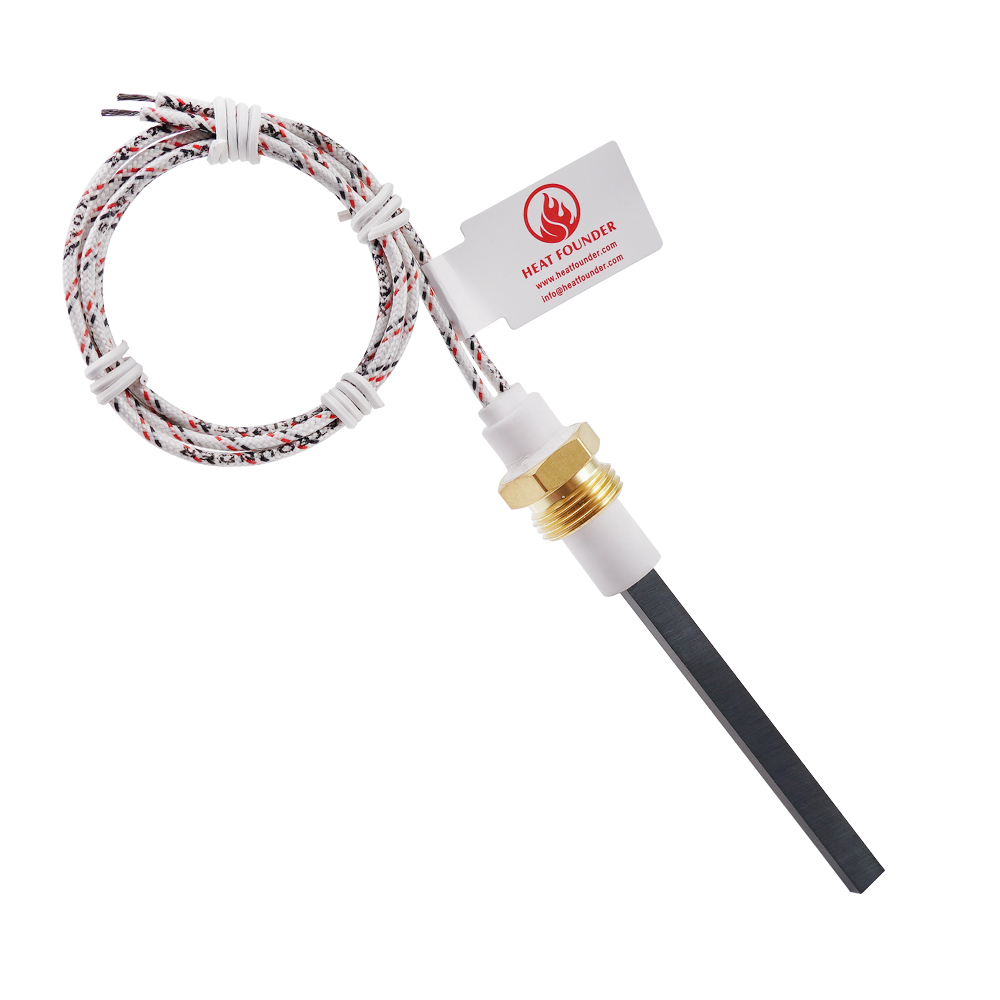

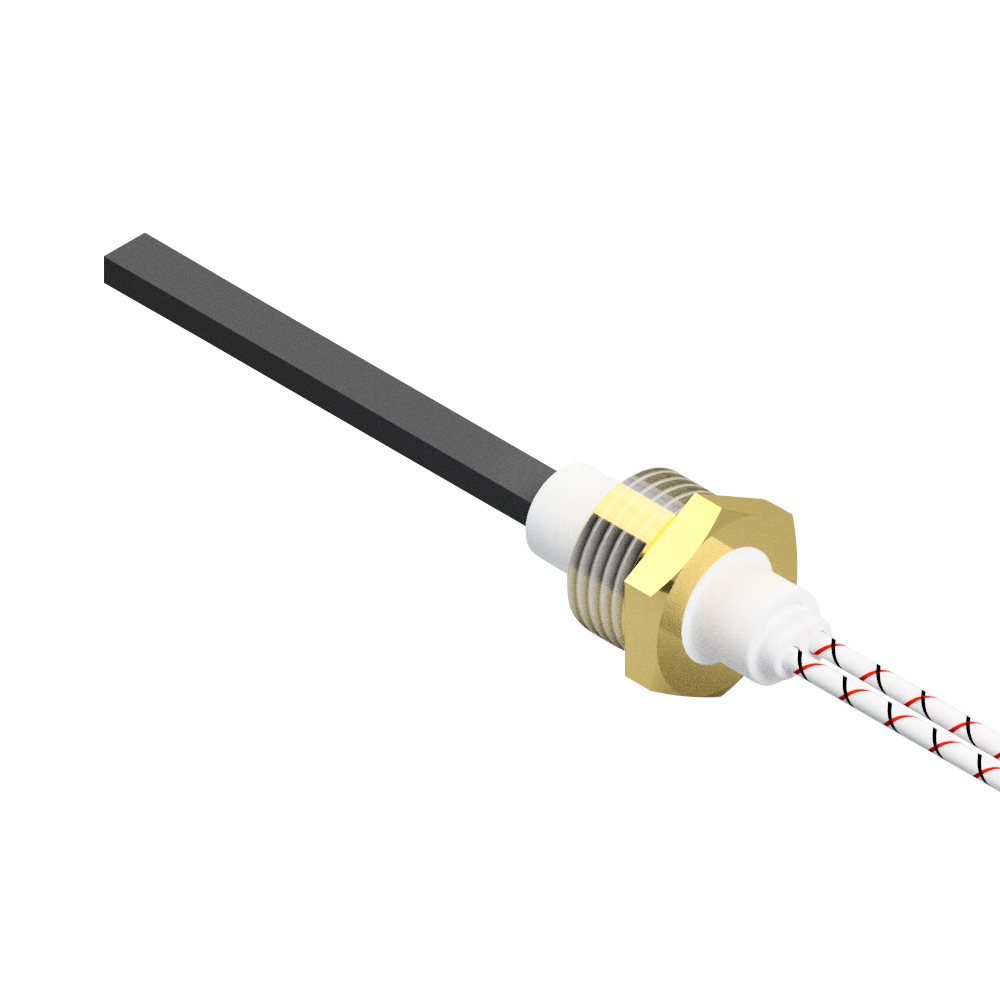

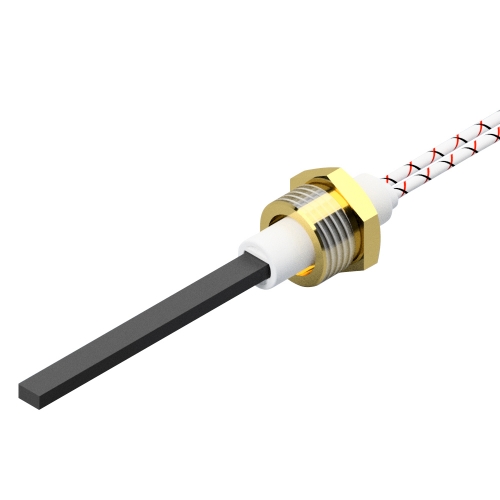

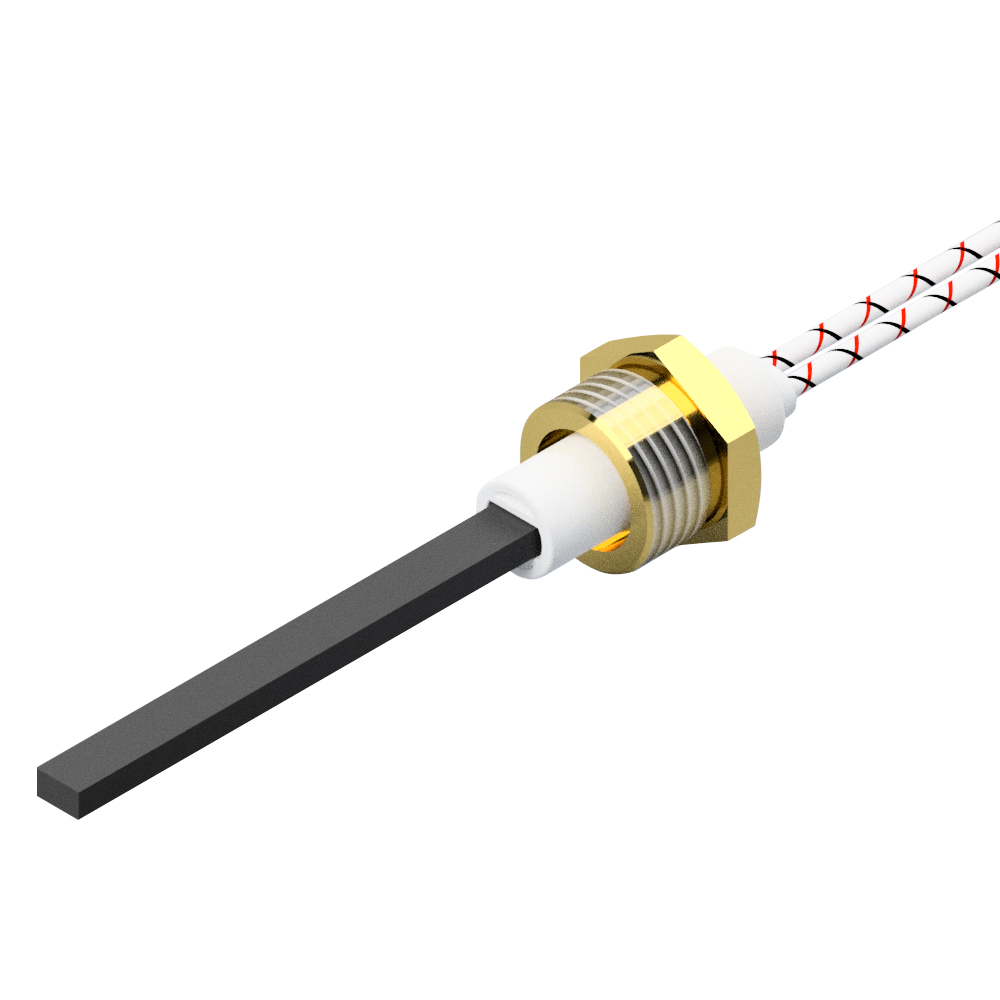

Name: HF12-X4-250AE/250BE Silicon Nitride Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF12-X4-250AE/250BE
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF12-X4-250AE/250BE

【90s Ignition Time & 100% ceramic igniters Replacement】【Patented Aerospace Ignition Technology - Quick To Ignite & Durable, Safe To Use】【Stable Heating & Small Size Igniter】
if you need more technical information,please contact info@heatfounder.com.

Ask for a Solution PDF Format

Description

Functional Role and Intended Users
The Silicon Nitride Igniter serves as a high-performance ignition solution primarily designed for industrial and commercial heating equipment manufacturers and system integrators. Its rapid heating capability up to 1000°C within 10 seconds addresses critical demand for quick, consistent ignition cycles. This product supports applications requiring robust hot water heater igniters or ceramic heater elements to optimize system responsiveness. Target users include OEMs in biomass boiler production, pellet stove manufacturing, and commercial gas burner assembly, where reliability and operational longevity are paramount for process stability and safety compliance.

Technical Composition and Measurable Performance
Constructed from silicon nitride (Si3N4), this igniter integrates patented aerospace ignition technology, offering superior thermal shock resistance, oxidation stability, and mechanical strength. Operating at 230V with power ratings between 250W and 300W, it achieves a watt density that promotes efficient heat transfer without compromising element lifespan. The igniter withstands temperatures up to 1300°C and complies with rigorous certifications including ISO9001 and SGS. Optional flange materials—ceramic, stainless steel, or copper—allow customization to fit diverse mounting parameters in systems requiring premium water heater element replacement or hot water heater igniters.

Industry Applications and Operational Benefits
In industrial environments, the Silicon Nitride Igniter is extensively used to facilitate rapid ignition in biomass boilers, gas burners, and pellet stoves, where energy efficiency and reduced startup time improve process throughput. Its role extends to specialized sectors such as environmental catalyst ignition and industrial heating tools requiring chemical resistance. The combination of compact size and durable ceramic heater elements enables seamless integration into heating systems, supporting consistent ignition reliability over extended operational cycles. This versatility enhances maintenance intervals and reduces downtime, offering a compelling value proposition in advanced heating equipment assembly and retrofit projects.

Product Advantages

Design and Structural Innovations
The Silicon Nitride Igniter incorporates advanced ceramic heater elements with a compact design that maximizes watt density for efficient thermal conduction. The modular flange options—ceramic, stainless steel, copper—facilitate adaptation to varied system architectures, enabling straightforward integration in complex assemblies such as hot water heater igniters or water heater element replacements. Its patented aerospace technology improves mechanical robustness and ensures chemical resistance, which increases durability under high-temperature cycling scenarios, minimizing component failure and maintenance costs in industrial heating environments.

Enhanced Performance and Operational Value
Performance-wise, the igniter delivers rapid temperature ramp-up, achieving full ignition temperature within seconds, significantly improving system startup efficiencies. Consistent operational lifespan of up to 90,000 cycles offers reliability in demanding hot water heater element applications or any heavy-duty ceramic heater context. Its high insulation quality and resistance to oxidation reduce thermal degradation, extending usable service life. This reduces total cost of ownership and enhances user confidence in system uptime, effectively supporting continuous process demands in industrial heating and ignition solutions.

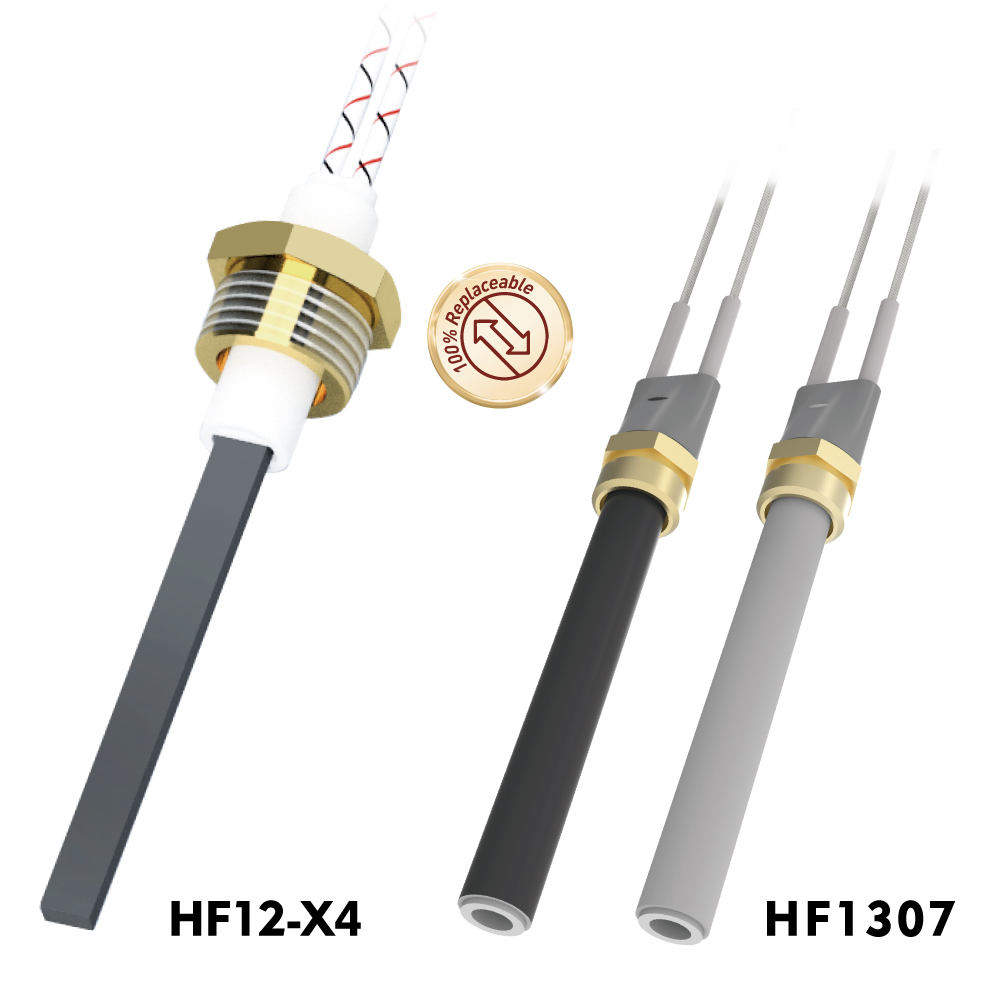

100% Replacement Ceramic Igniter

Quartz Igniter

The third generation ignition technology.100% Replacement Ceramic Igniter.With it can quickly light your stove.
It only takes 10 sec. to exceed 1200℃!It only takes 90sec.to light the stove!
3rd generation :Quartz Igniter has 10 years of life and 100.000 cycles guaranteed with same performance!!
Quartz Igniter, one more step towards the future.Infinite range of models all customizable.

Name	Silicon Nitride Igniter
Model	HF12-X4-250AE/250BE
Material	Silicon Nitride (Si3N4)

Color	black
Voltage	230V
Power	250W-300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	1100~1300 °C/2012~2372℉
Ignition Time	up to 1000°c in 10 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler
Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing

Use Scenarios

Biomass Boiler Ignition Systems
In biomass boiler operational settings, the Silicon Nitride Igniter functions as a critical ignition component to initiate combustion efficiently, ensuring rapid heat generation necessary for sustained energy output. Its ceramic heater elements withstand the chemically aggressive environment within biomass fuel combustion chambers, while its reliable hot water heater igniter capability supports stable ignition cycles under variable load demands. Integration with automated control systems allows synchronized ignition timing, optimizing fuel consumption and meeting environmental compliance standards for emissions reduction.

Commercial Pellet Stove Startups
Within commercial pellet stove applications, this igniter provides fast, dependable heat to initiate pellet combustion, enabling rapid operational readiness and improved user safety. Its durable ceramic heater structure resists wear from repeated thermal cycling, significantly reducing replacement frequency and maintenance downtime. The product’s compatibility with existing hot water heater igniter interfaces facilitates retrofit projects, maintaining system design consistency while improving ignition reliability. This results in enhanced workflow efficiency and cost-effective operation in commercial heating installations.

FAQ

What flange materials are available for the Silicon Nitride Igniter?
We offer customizable flange materials including ceramic, stainless steel, and copper to suit different installation needs. If you require other materials, we can discuss options to ensure the igniter integrates seamlessly into your equipment.

How long does the Silicon Nitride Igniter last under typical use?
Our igniter provides a service life of up to 10 years or 90,000 operational cycles while maintaining consistent performance, ensuring long-term reliability for industrial applications such as water heater element ignition and combustion systems.

Can I use this igniter as a replacement part for hot water heater igniters?
Yes, the Silicon Nitride Igniter is compatible with various combustion devices and can serve as a durable hot water heater igniter replacement. Its fast heating and patented aerospace technology make it suitable for upgrading or maintaining your systems.

What is the delivery time for sample orders and bulk production?
We typically deliver sample orders within 5 working days and mass production orders within 12 working days, allowing you to plan installations and procurement efficiently with reliable lead times.
